Introduction :   The Universal Gateway is the key product for the SALUS Smart Home system. This will offer you the possibility to wirelessly control all the connected equipment just by using your smartphone or your computer. You can connect up to 240 devices to one gateway. Before a Gateway can used it must first be Activated.


Activation Procedure :


  1. First make sure your UG600 Gateway is connected to the Internet and that the LED ring on the top is Blue.


Graphical user interface, applicationDescription automatically generated

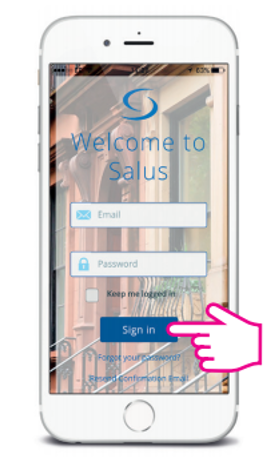

  1. Sign into your Smart Home Account with your  credentials.

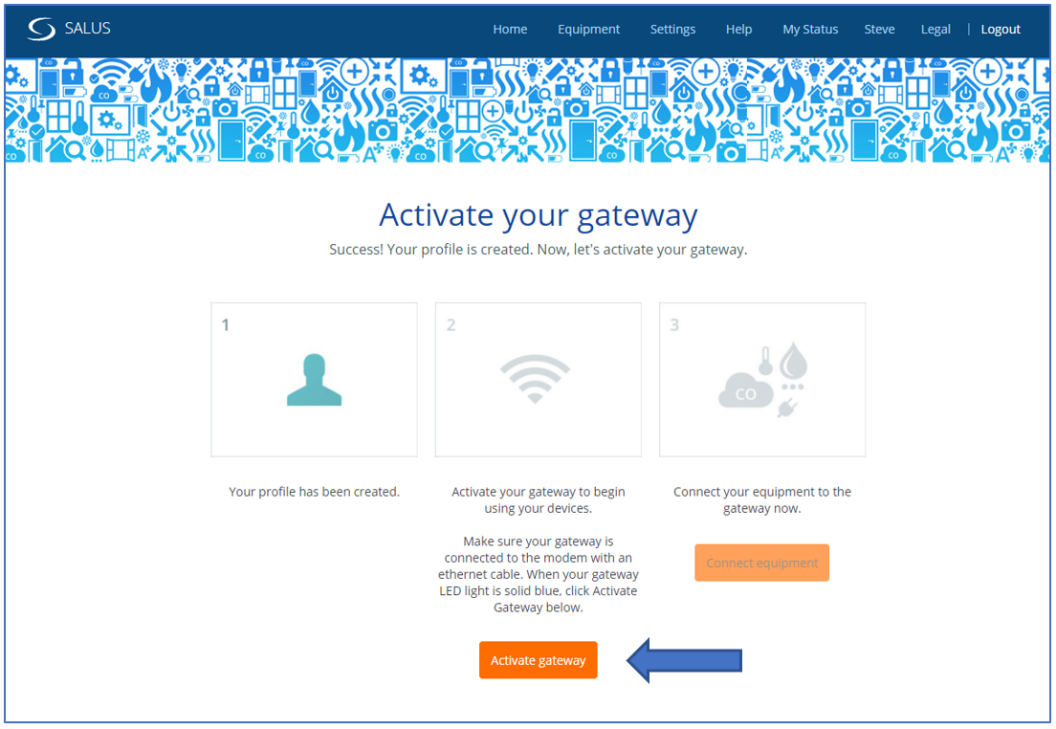

  1. If it is the first Gateway being activated on the account, you will automatically be asked to Activate your Gateway when you sign in and the following screen will be shown.



  1. Simply click on the Orange ‘Activate Gateway’ button.


Graphical user interface, text, websiteDescription automatically generated

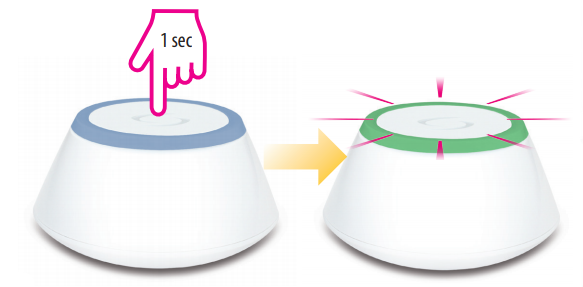

  1. Press the button on the top of the Gateway, your UG600 will begin to flash Green.

A picture containing dishwareDescription automatically generated

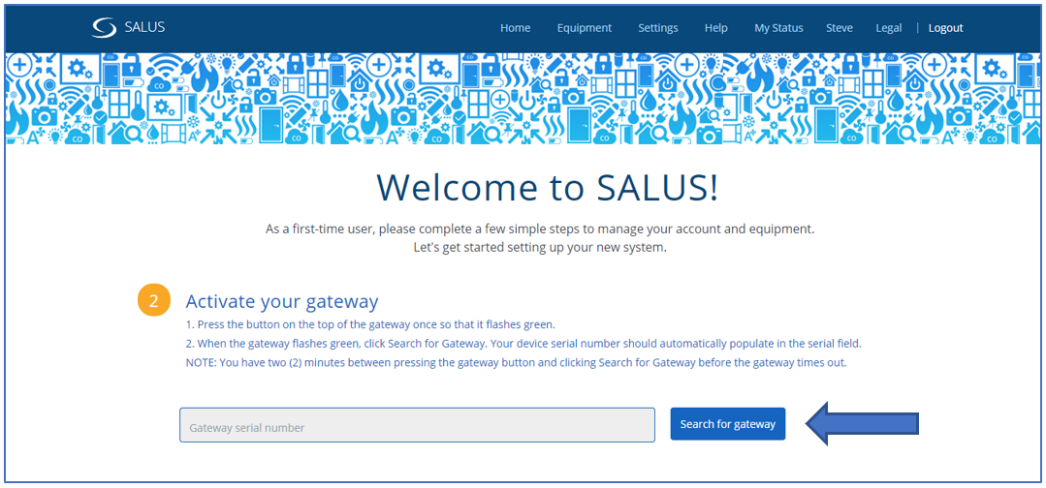

  1. Now click on the blue ‘Search for Gateway’ button.


Graphical user interface, text, applicationDescription automatically generated

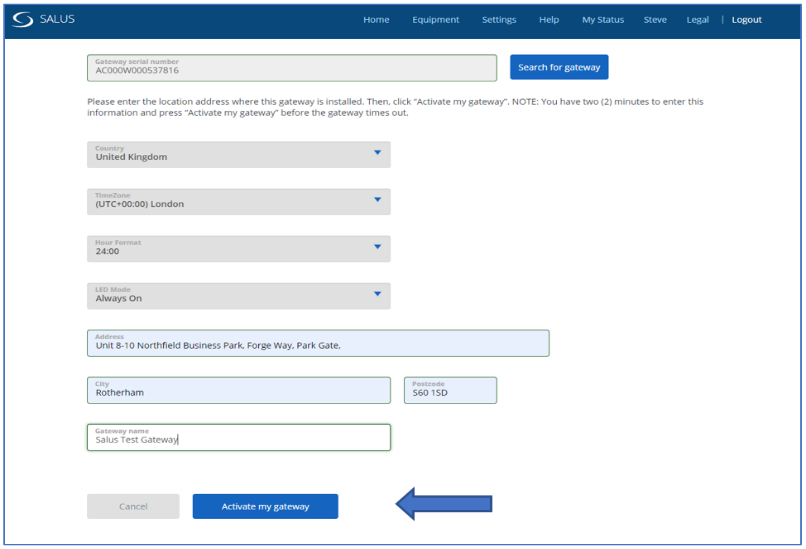

  1. When your Gateway is found, its Serial Number will automatically be populated onto the screen. You now have two minutes to select the options on the screen and complete the address and name for your Gateway. You then need to press the blue ‘Activate my Gateway’ button.


Graphical user interface, text, application, emailDescription automatically generated


Note : If the screen times out before you have finished entering the information, simply press the button on the top of the Gateway once, the LED should return to solid blue. Then click on the ‘Search for Gateway’ button again and re-enter the details completing the process by clicking the ‘Activate my Gateway’ button.


  1. You have now successfully installed your UG600 Gateway.




  1. To go to your Smart Home Dashboard, press the Salus Logo.
