Adding an Additional Gateway

Adding an Additional Gateway

Adding an additional Gateway

Description :        The following procedure guides you through adding and activating an additional Gateway to your Smart Home Account.


  1. Sign into your existing Smart Home Account.

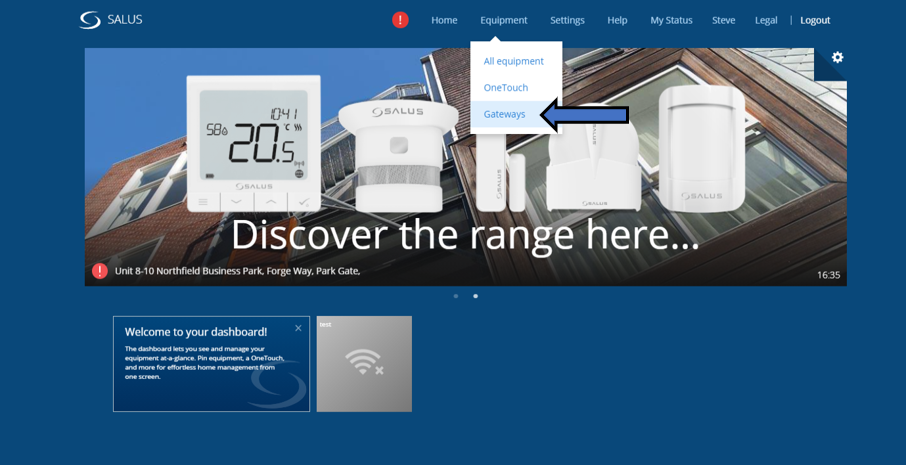

  1. Select ‘Equipment’ from the Menu, followed by ‘Gateways’ (as shown below).

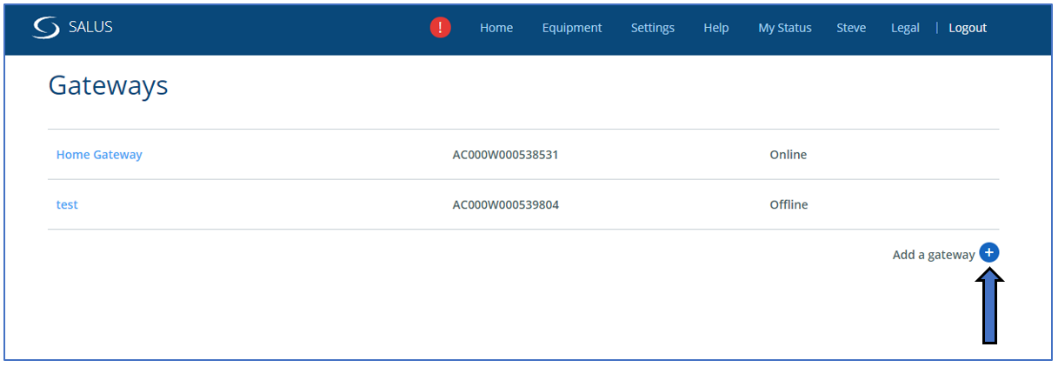

  1. Your Current Gateways will be shown.  Now click on ‘Add a Gateway’.



  1. An instructional procedure message is displayed on the screen guiding you through the next steps.

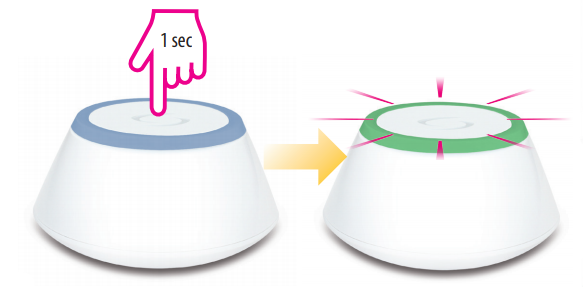

  1. Press the button on the top of the Gateway, your UG600 will begin to flash Green.


A picture containing dishwareDescription automatically generated

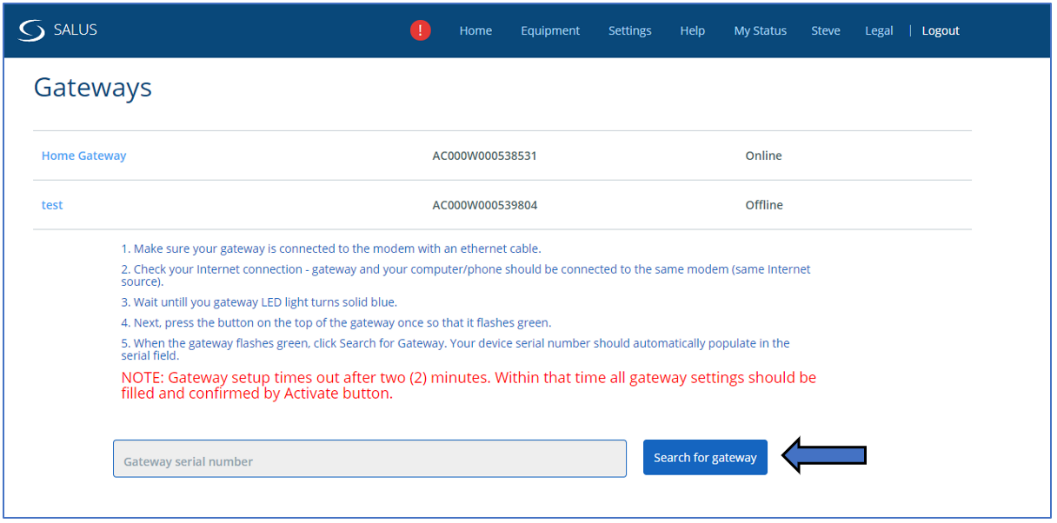

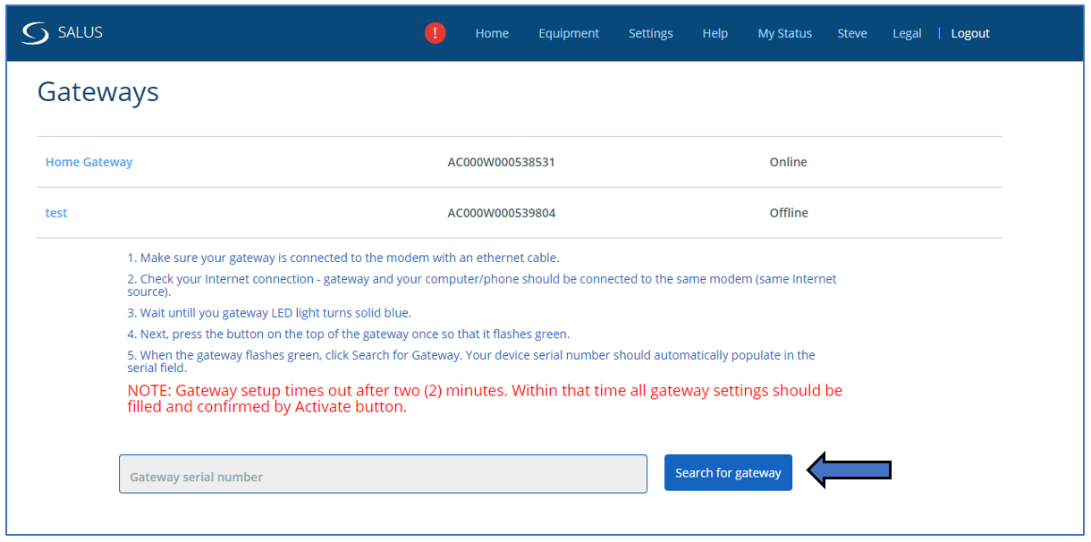

  1. Now click on the blue ‘Search for Gateway’ button on your Smart Home Screen.

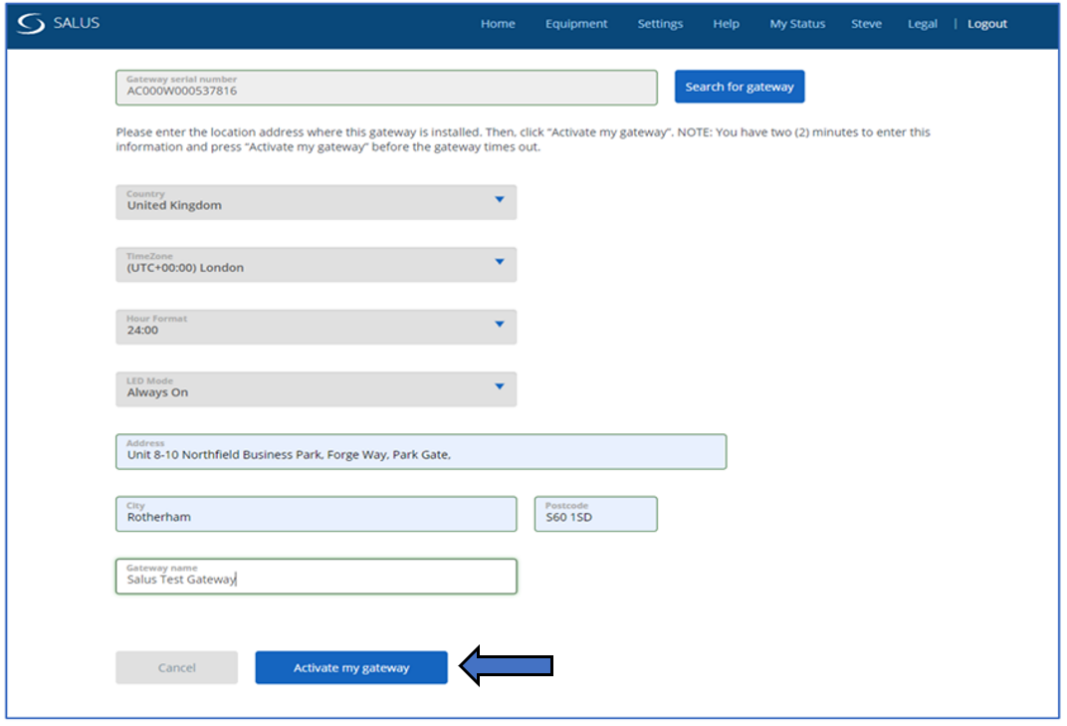

  1. When your Gateway is found, its Serial Number will automatically be populated onto the screen. You now have two minutes to select the options on the screen and complete the address and name for your Gateway. You then need to press the blue ‘Activate my Gateway’ button.



Note : If the screen times out before you have finished entering the information, simply press the button on the top of the Gateway once, the LED should return to solid blue. Then click on the ‘Search for Gateway’ button again and re-enter the details completing the process by clicking the ‘Activate my Gateway’ button.



  1. You have now successfully installed your UG600 Gateway.




  1. To go to your Smart Home Dashboard, press the Salus Logo.
