 CO10RF : Technical Information Page  (3.1.1) .



Group Shape To Image


All iT600 ZigBee wireless systems need a coordinator to control and coordinate the ZigBee network.

The CO10RF coordinator can make any iT600 system smartphone ready by connecting the coordinator to the G30 smartphone gateway (sold separately).


Product Specification :



Product Name

CO10RF

Dimensions

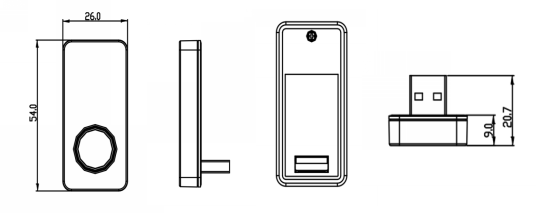

L=54mm   W=26mm   D=9mm

Supply

5V DC

Operating Temperature

0 to 50 ºC

Storage Temperature

-20 to 60 ºC

Frequency

2.4 GHz

Power Source

230V 50Hz via mains adaptor (supplied)

User Interface

Single Push Button

Approval

CE
