DT300 (Hard Wired) - Wiring Diagrams

DT300 (Hard Wired) - Wiring Diagrams


DT300 – Wiring Diagram (1.4.3.)

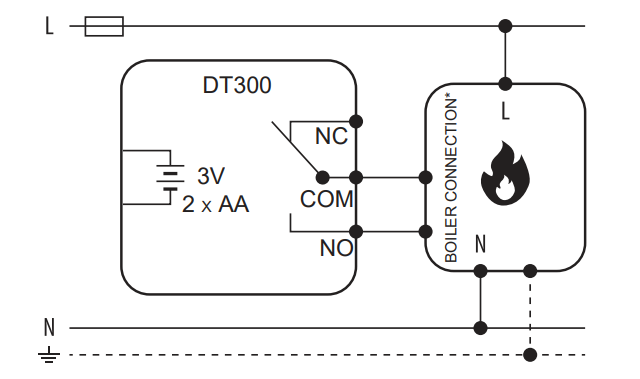

Boiler Connection

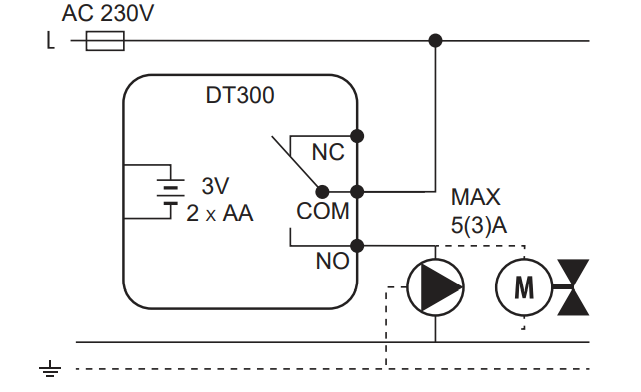

Pump / Valve Connection

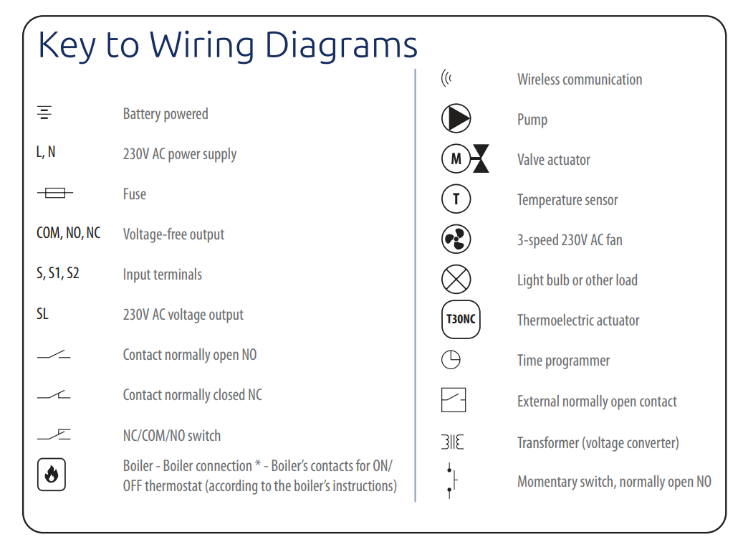

TableDescription automatically generated
