This guide provides a comprehensive walkthrough for pairing your SALUS EL600F thermostat with either the CB12RF wiring center (offline) or the UG800 gateway (online). Follow these instructions carefully to ensure successful pairing and seamless integration with your SALUS smart home system.


Part 1: EL600F Initial Setup

These first steps is preparing the device for the paring process.


1. Power On Thermostat: Start by powering on the thermostat. The thermostat will automatically go into pairing mode and can be found both offline and online by the gateway.



Part 2: Pairing with CB12RF Offline

This section describes the process for pairing your EL600F thermostat with the CB12RF wiring center in offline mode.


Step 1: Set CB12RF to ZigBee 3.0


1. Jumper Placement:

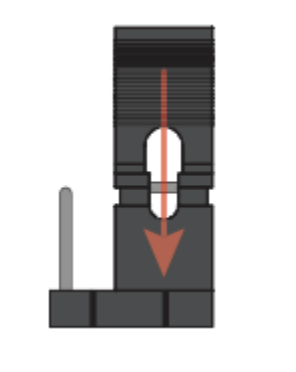

Locate the jumper on the CB12RF unit and switch it from IT600 to ZigBee 3.0. This ensures that the CB12RF is communicating using the correct protocol.


Step 2: Initiate Pairing Mode on CB12RF

1. Network Button Activation:

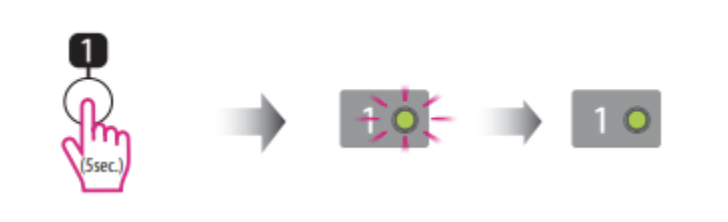

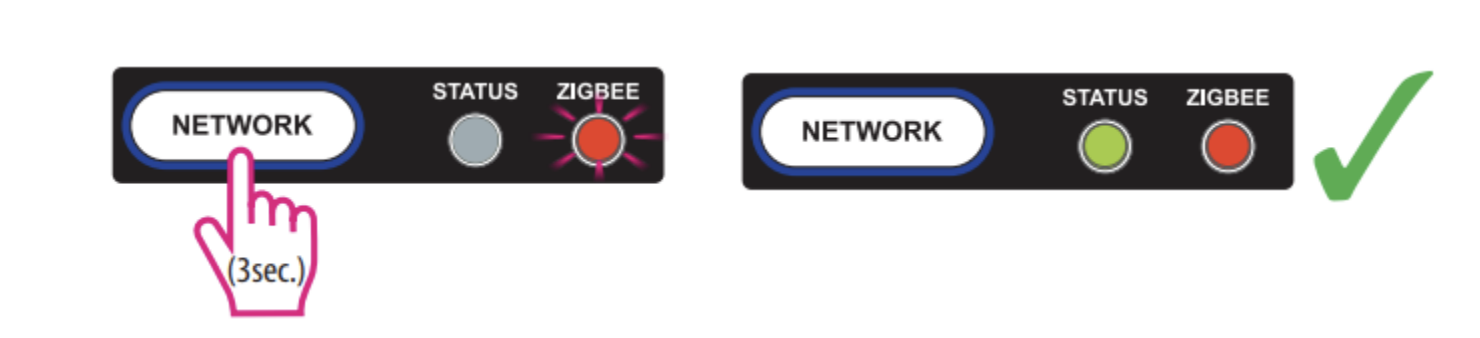

 Press and hold the NETWORK button on the CB12RF until the ZigBee light stops flashing. When the Status light is green and ZigBee is flashing, it's ready for pairing.


Step 3: Set the Thermostat in Pair Mode

This portion describes how to set the EL600T in pair mode.

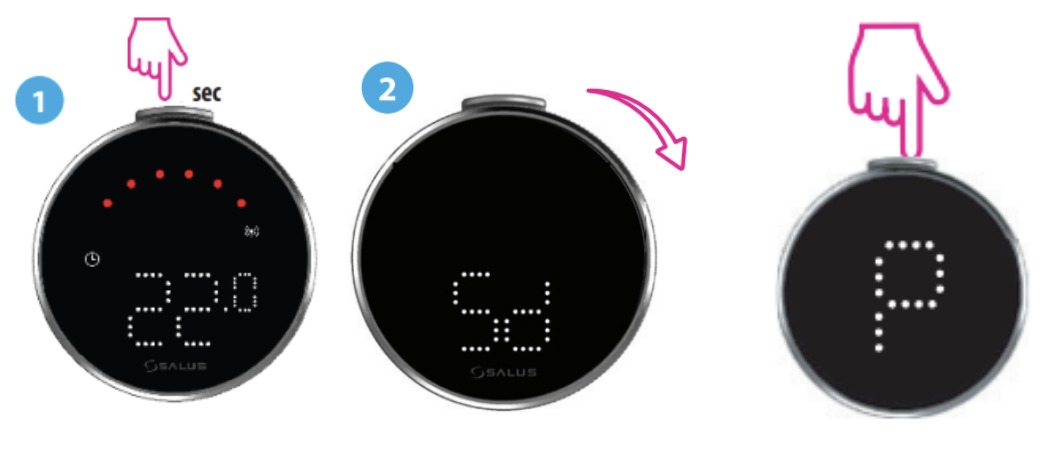

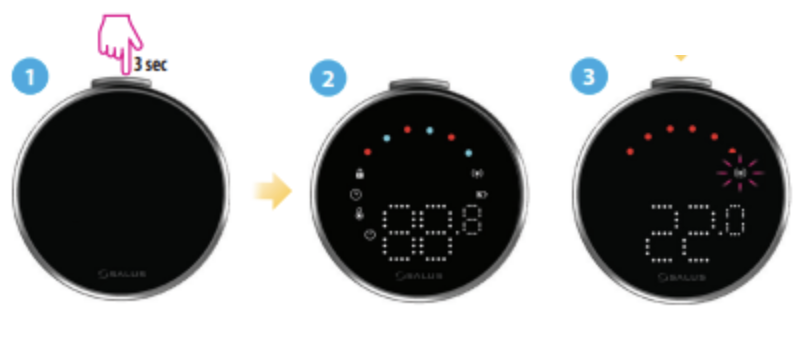

1. Short Press and Long Press:




Step 4: Setup in the thermostat

This portion is about to setup the thermostat to press on the area where the number is starting to flash.

1. Click the right area the number where the zone is located is blinking then the thermostat is paired.




Part 3: Pairing Online with UG800 Gateway

This section outlines the steps for pairing the EL600F thermostat with the UG800 gateway, enabling remote control and monitoring.


Step 1: Access Menu

The first step is how to access the application to start the setup.

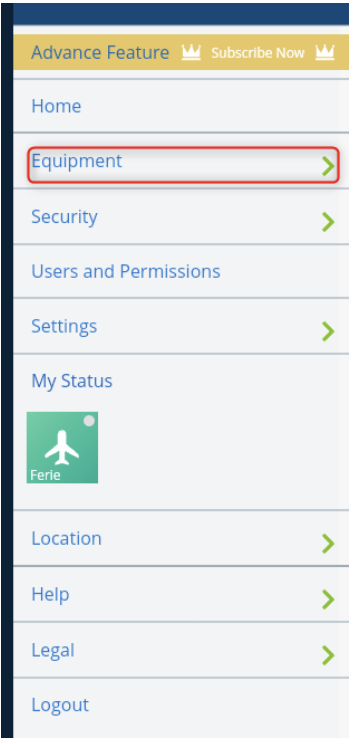

1. Click at the menu button:



Step 2: Enable Pairing on the application

Now the next step to do is to access to the pairing section to start connecting and recognize the thermostat.

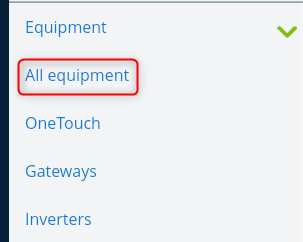

1. Click All Equipment:





Step 3: Pairing the EL600T

Here is a section to describe how to pair the thermostat.

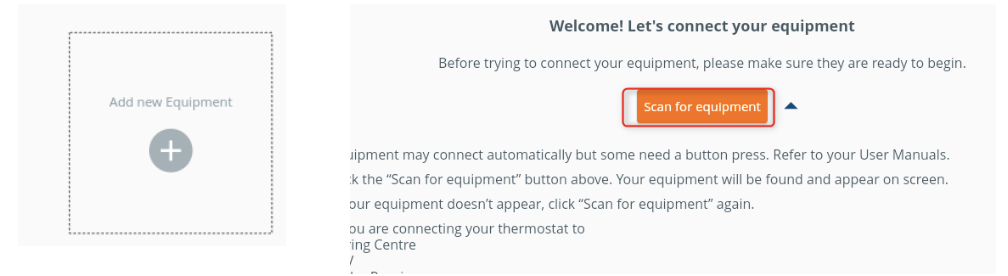

1. Click "Add new Equipment":

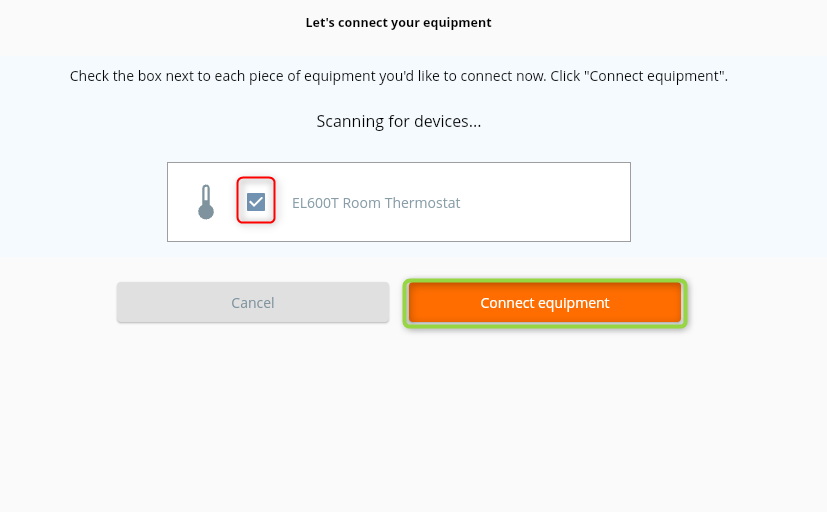

2. Check the devices on the area to set up connection




Step 4: Setting the Equipement

This stage will guide the user on what should be the information to declare.

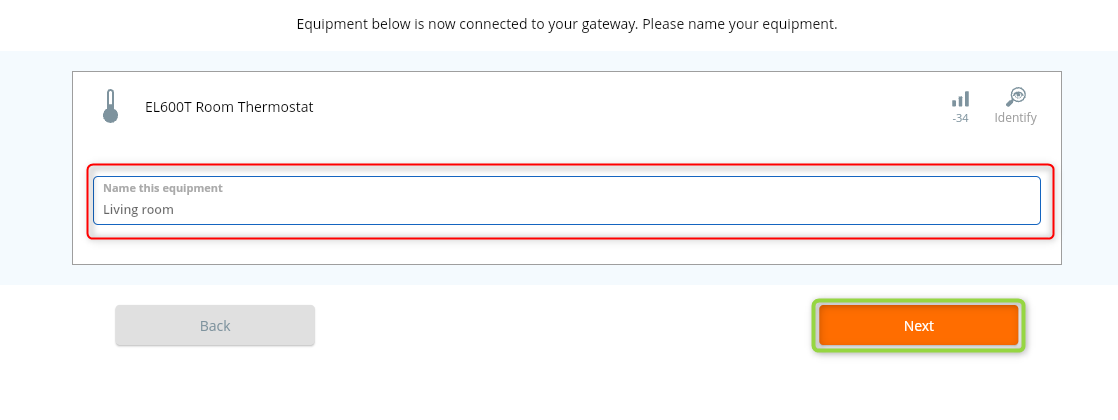

1. Set the Device Name to be displayed.


2. Confirm that the proper device is showing




Step 5: Choose the mode
This part is to choose what the equipement want to be use, and then complete the process.

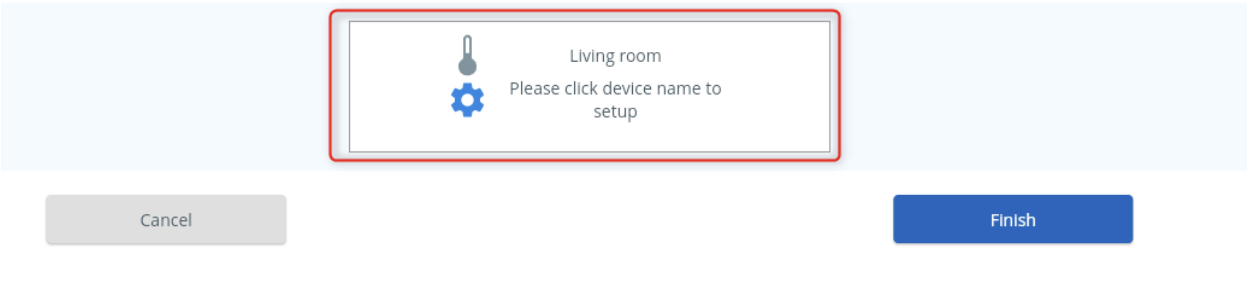

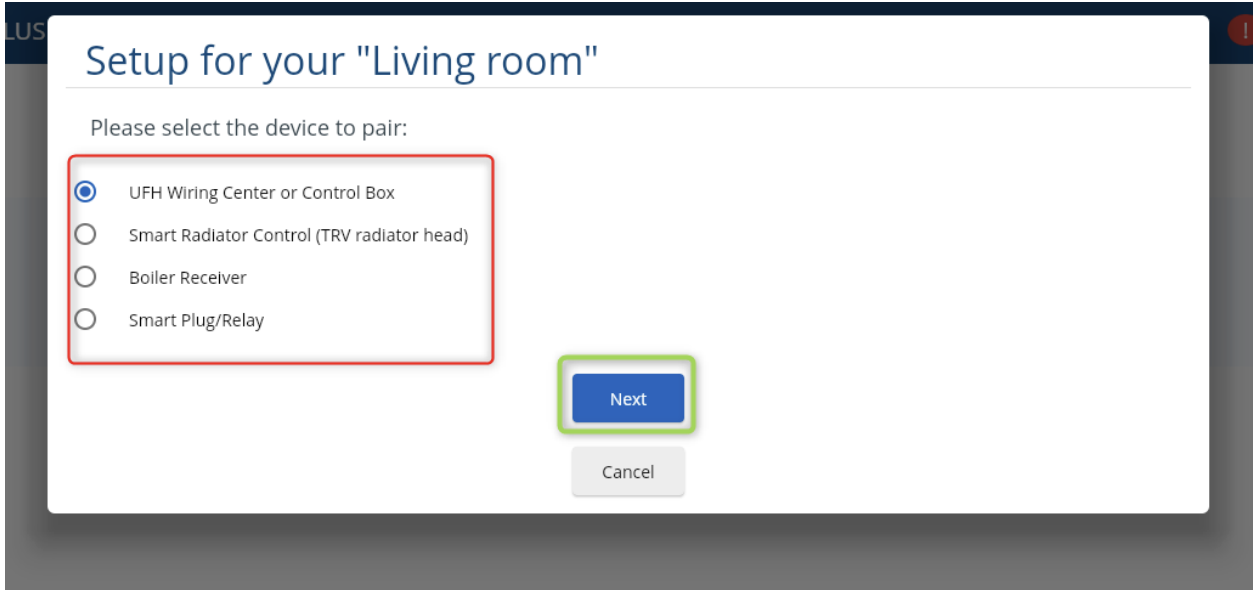

1. Choose the device you want to pair with the thermostat and follow the steps:



2. Choose if it's linked with the thermostat: If the message will shows "Success!" then the process is finish.


3. Click finish: to completely wrap up all the step by step, and finish all the procedures..


This step-by-step guide provides clear instructions for pairing your SALUS EL600F thermostat with either the CB12RF wiring center or the UG800 gateway. Remember to consult the official SALUS documentation for the most accurate and up-to-date information.
