SALUS EL600F Thermostat Pairing Guide: Pairing with a UG600/UG800 in Online Mode.

This guide explains the pairing of a SALUS EL600F thermostat to a UG600 or UG800 gateway. The gateway needs to be online and connected to an account.

It is possible to assign a Salus Smart Home Device or Wiring Centres Zone to the EL600F during the pairing process or left for later assigning.

Note: To be able to assign the desired device during this pairing process the desired device will need to be added before the EL600F to appear in the selection step.

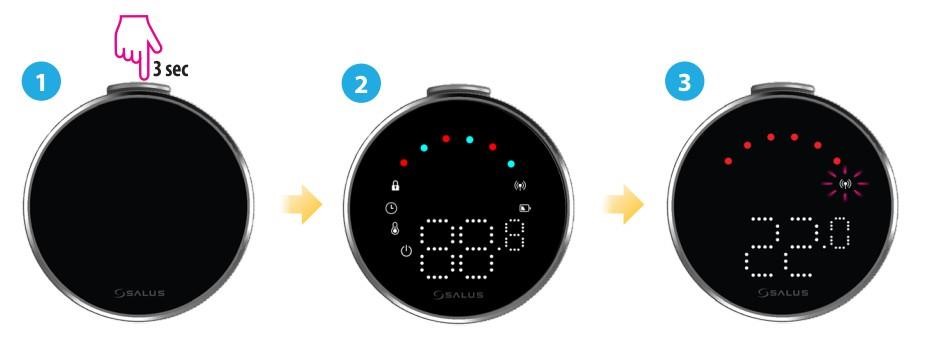

Step 1. Power on the EL600F

Start by powering on the thermostat to see if it has charge, otherwise place on stand to charge. The thermostat will automatically go into pairing mode on startup.

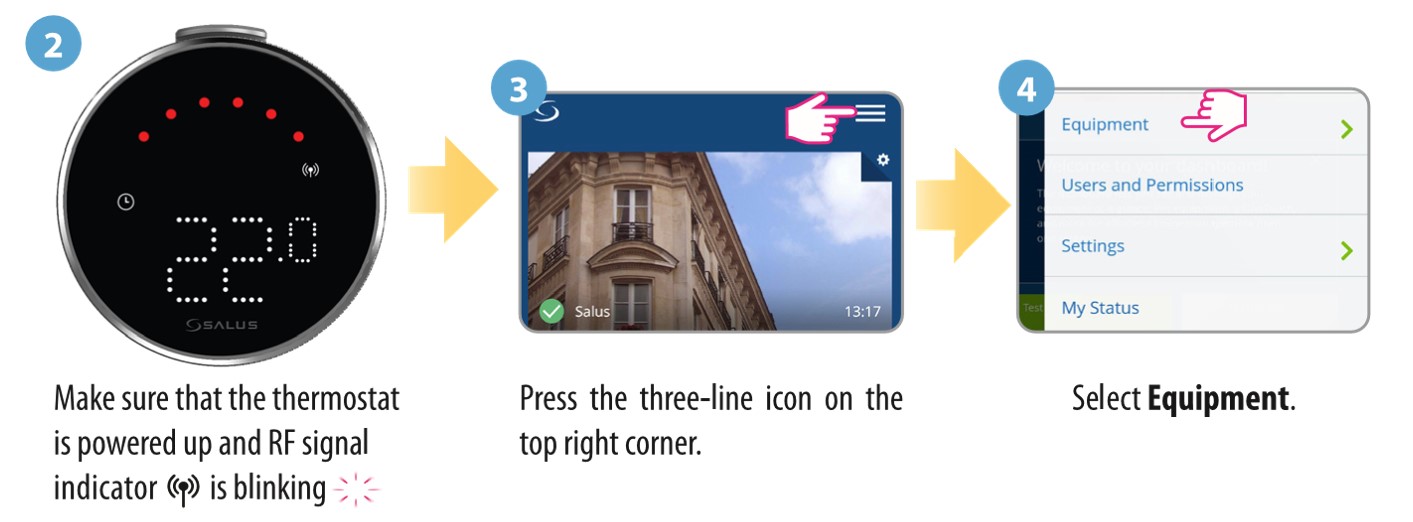

Step 2. Pairing EL600F to UG600/UG800

2.1. Open the Salus Premium Lite app and login to your account.

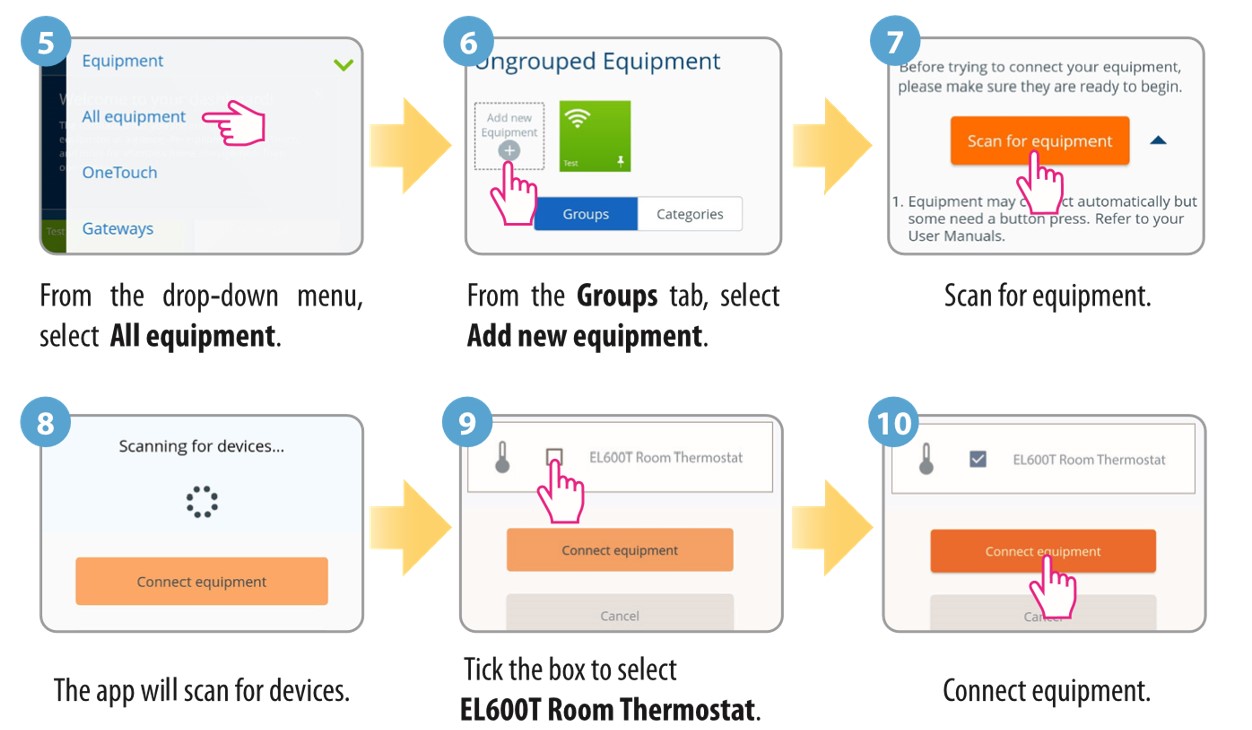

2.2. Add the EL600F to your account

At point 12 you can choose to assign a device or leave it for later:

A) Assigning - requires the device to be already connected to your account before the EL600F.

B) Not Assigning – can be assigned later in settings.

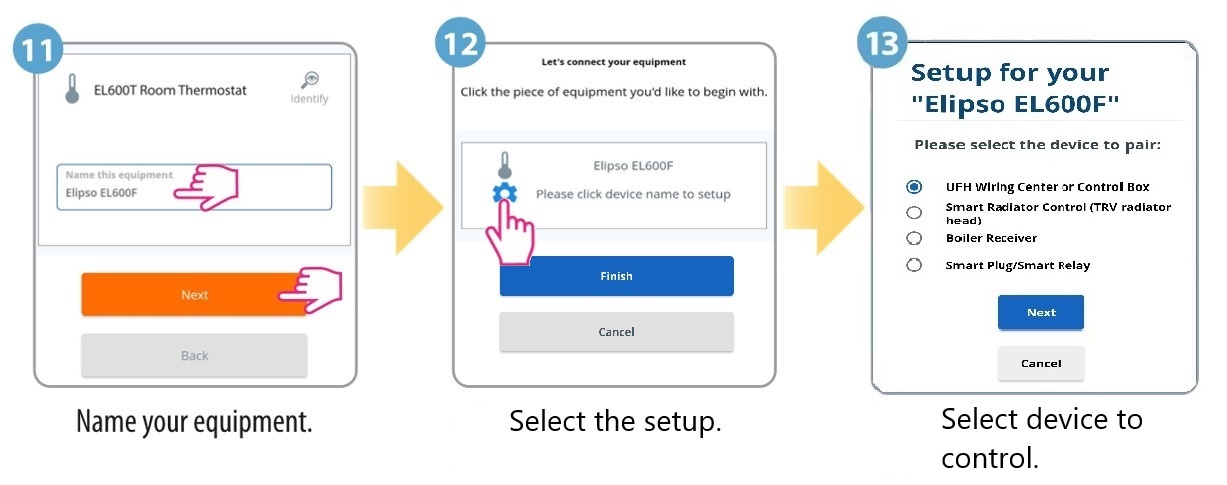

Option A) Assigning

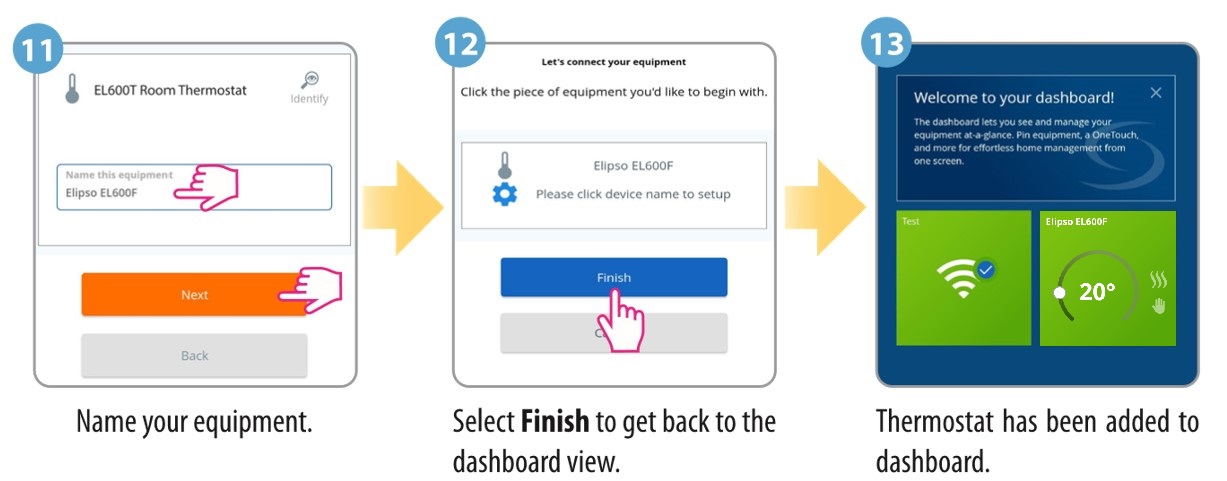

Option B) Not Assigning

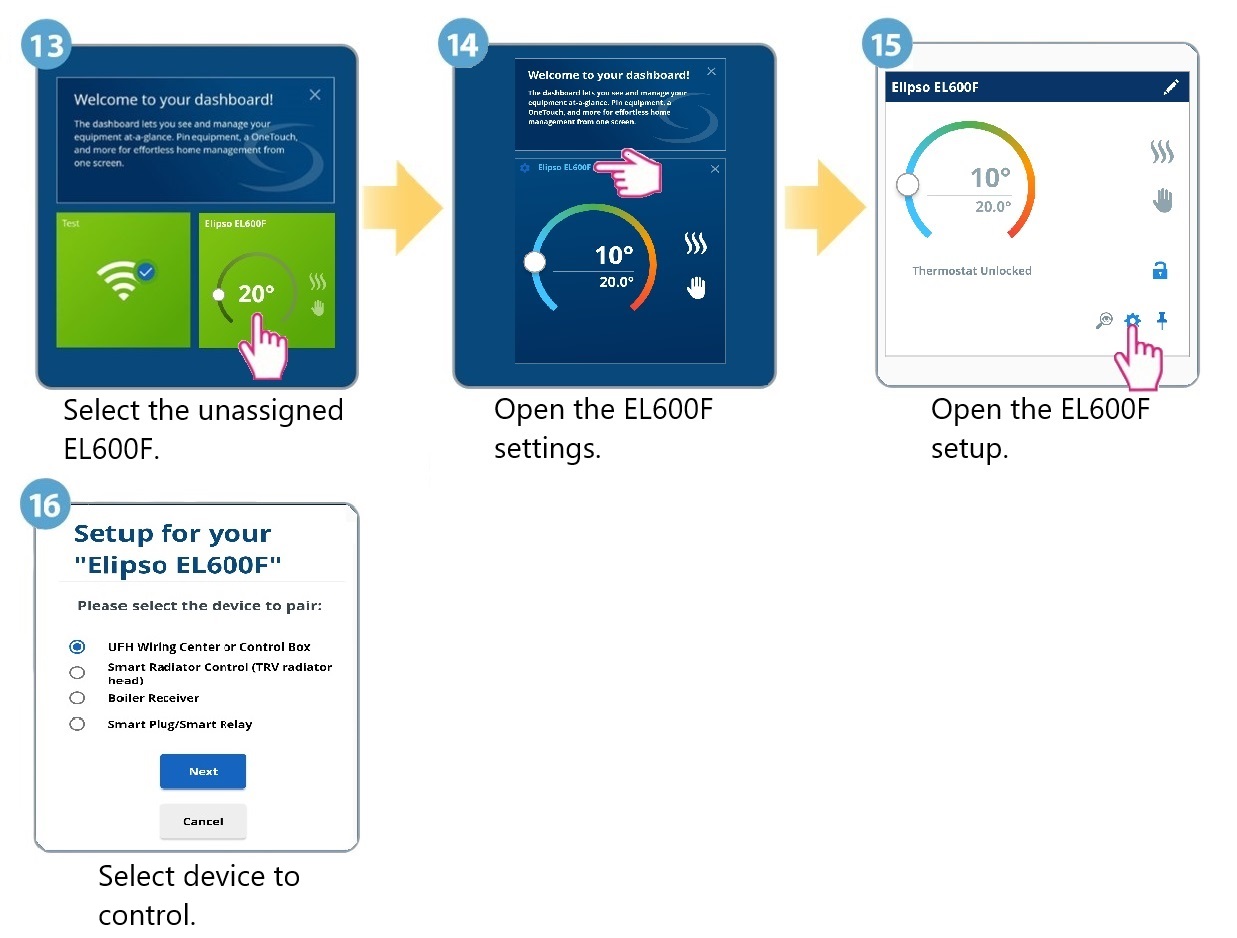

When the desired device is added to the account, assign it by choosing it in the EL600F settings:
