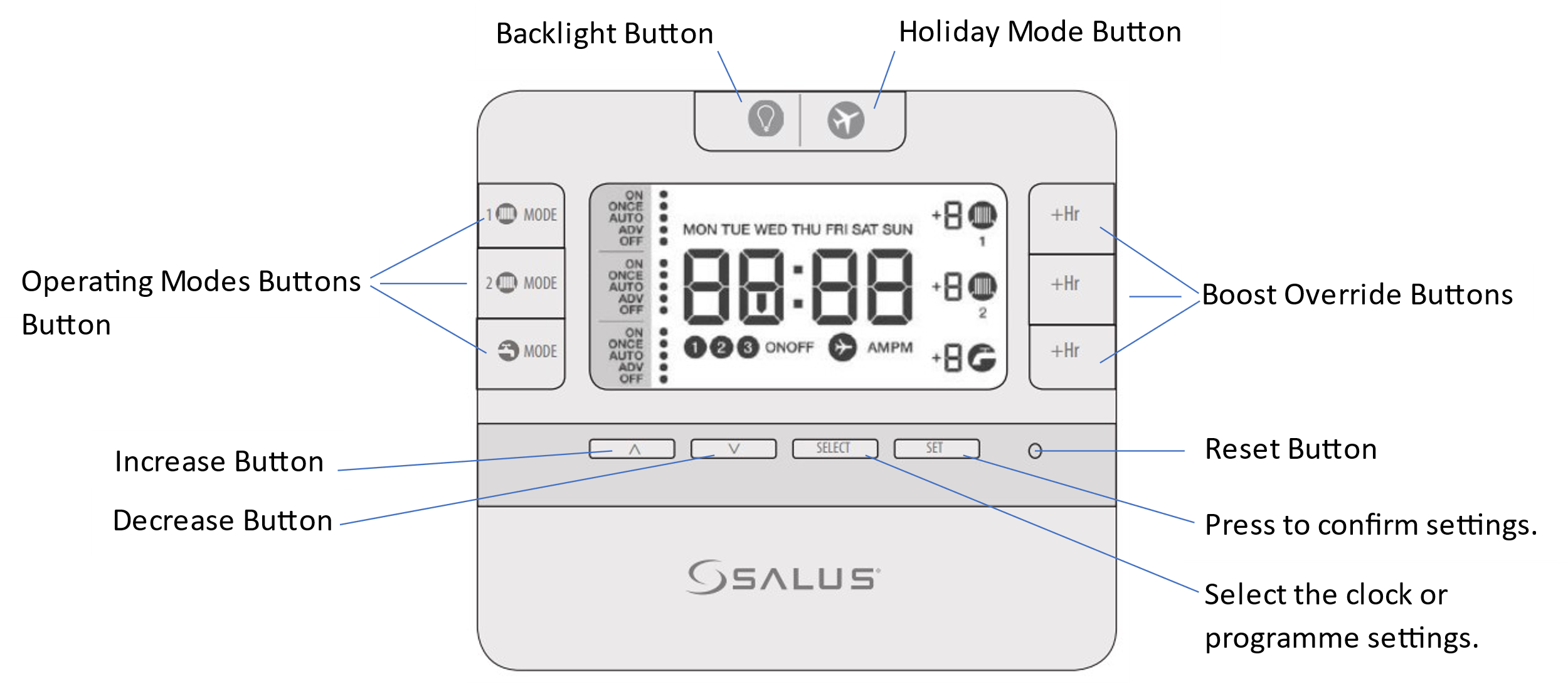

 EP310 : Operating Keys and Buttons  (1.7.1) .

Description :

The EP310 three channels programmable controller is a stylish wired timer that can be used for two central heating zones and also for the hot water. Each output will control one zone, meaning that you can create personalized schedules for each channel.





Key

                                                   Function




   Press to activate the Backlight.




   Press and hold for 3 seconds to activate the Holiday Mode.


   MODE


   Press to select Operating Modes On / Once / Auto / ADV / Off.


   +1 Hr


   Press to Enter / Cancel the Boost Override function by setting Boost Hours.

IconDescription automatically generated


   The Increase Button.  (Press and hold to enter ‘Fast Advance’)

IconDescription automatically generated


   The Decrease Button. (Press and hold to enter ‘Fast Advance’)



     Shape, circleDescription automatically generated




   The Hardware Reset Button





   Select the clock or programme settings.






   Press to confirm your settings.

 +




   Press the buttons for 3 seconds to enter Clock Settings.
