How to connect a wired or connected UG800 to Wi-Fi

This allows to reposition the UG800 for a better signal coverage.

Step 1: Go in UG800 Admin settings

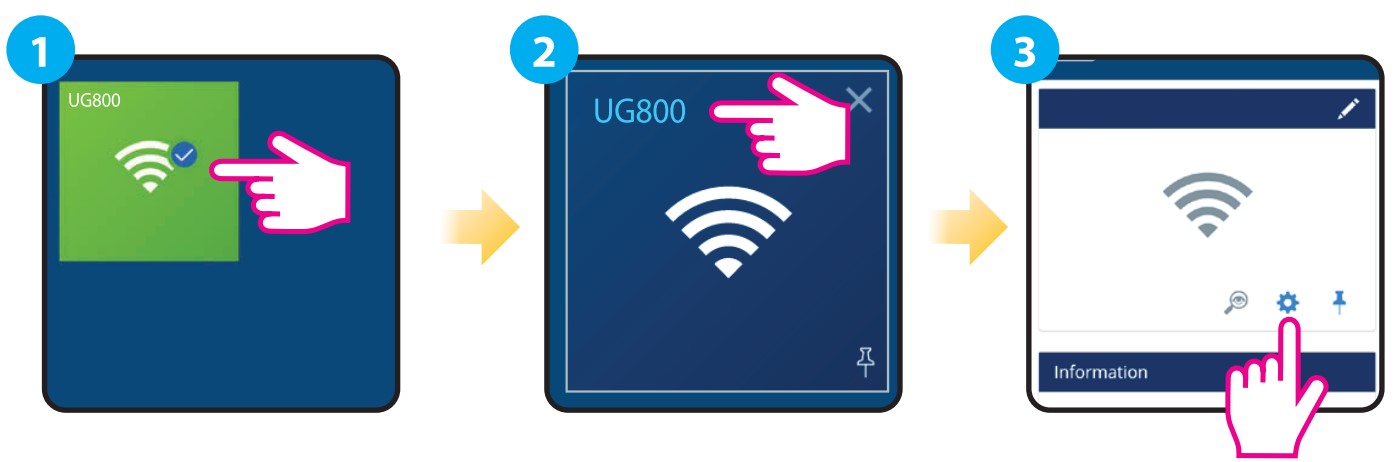

1.1. In the Salus Premium Lite app go to UG800 Admin settings:

Step 2: Select and provision your local Wi-Fi

2.1. Scroll down till you see “WiFi SSID” and Password

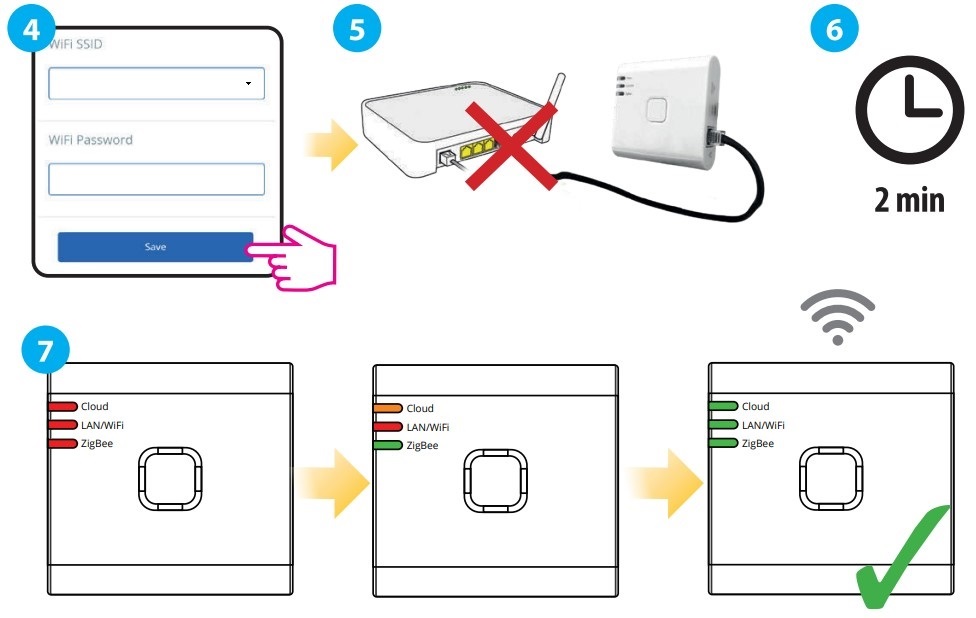

2.2. Enter the WiFi SSID (4) or click on the small arrow (right hand side) to load all available local networks and select your WiFi SSID

2.3. Enter the WiFi password in the password field and Save (4)

2.4. It will prompt a need to restart (power cycle) the UG800 for the settings to take effect

2.5. Unplug the UG800 (5) and move it more central, near a power socket, power up the UG800 via the USB cable and adapter, when all lights turn green it has successfully connected (7):

Note: If it fails to provision in 10 minutes time, plug the patch cable back in and double check you entered the right password at Step 2.3 (4).
