HTRP-RF 50 - Wiring Diagram

HTRP-RF 50 - Wiring Diagram

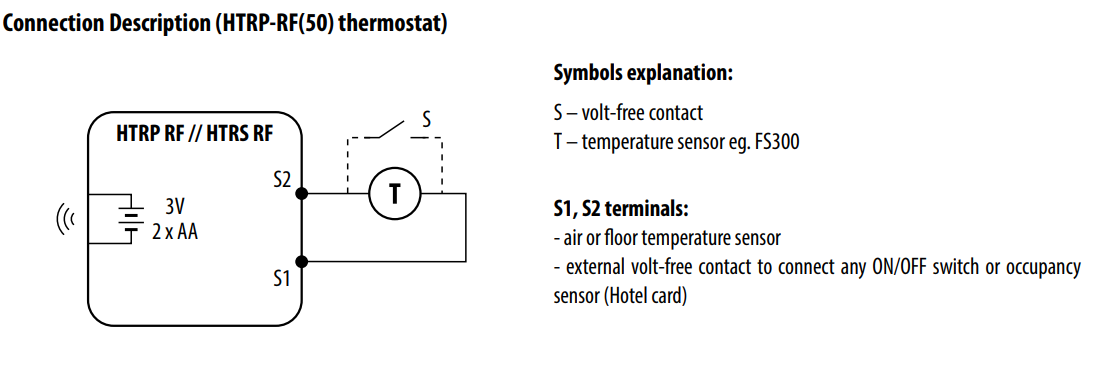

 HTRP-RF(50) : Wiring Diagram  (1.3.2) .


The HTRP-RF(50) requires no wiring, simply install 2 AA Alkaline batteries.
