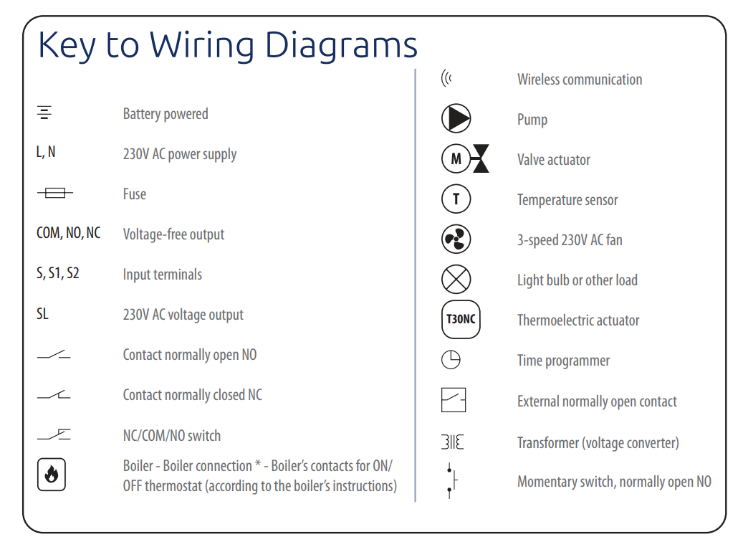

HTRS230 – Wiring Diagram (1.3.2.)

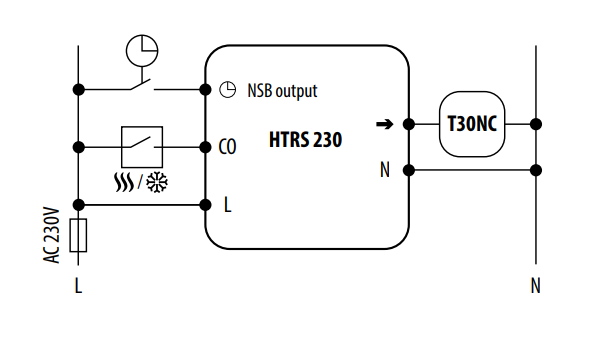

Connection description

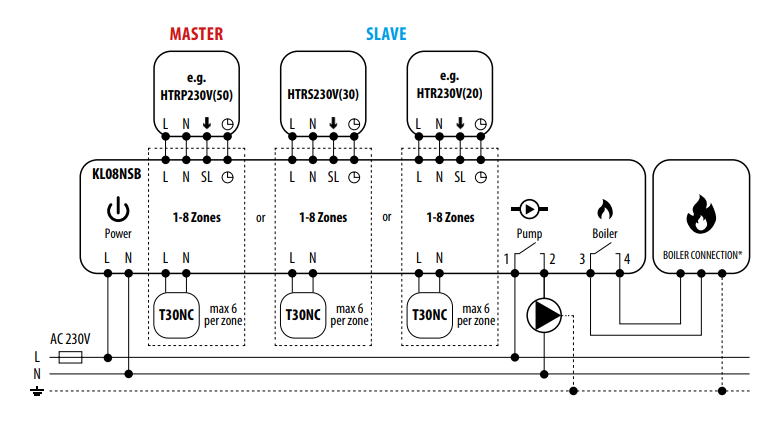

4 Wire Installation with KL08NSB Wiring Centre

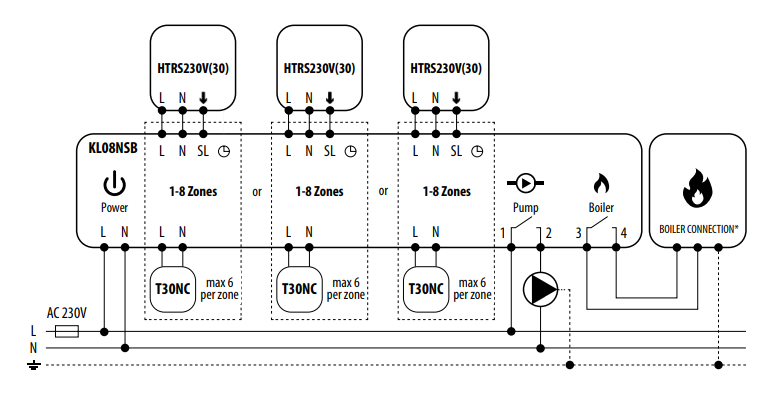

3 Wire Installation with KL08NSB Wiring Centre

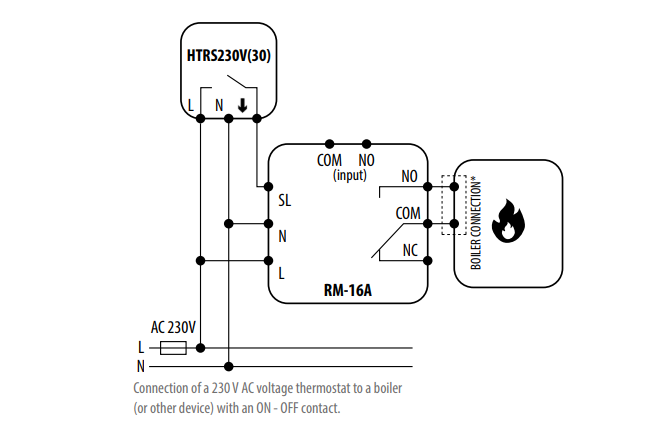

Installation with RM-16A Relay - Connecting to a boiler.

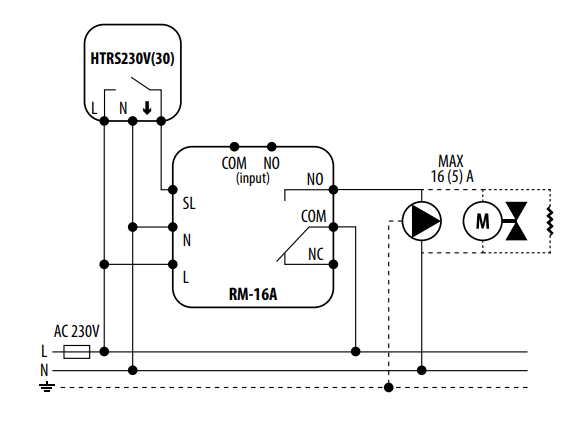

Installation with RM-16A Relay –   Connecting to a control valve.
