IT500- Inserting Batteries & Device Code

IT500- Inserting Batteries & Device Code

 iT500 : Inserting the Batteries & STA Device Code  (1.5.1) .

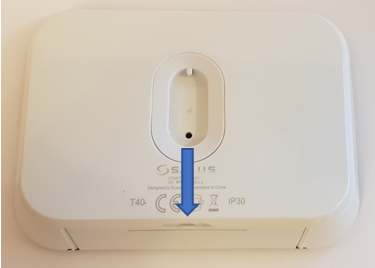

  1. Remove the battery cover from the base of the iT500 thermostat.

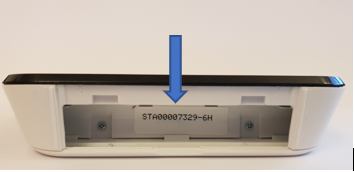

  1. Take a note of the full device code. This will be needed to register your device and may be useful should you require any Technical Support.

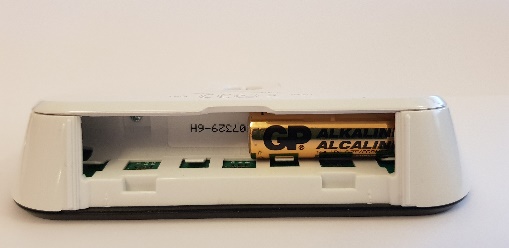

  1. With the thermostat facing down, insert one new Alkaline AA Battery into the right hand side.

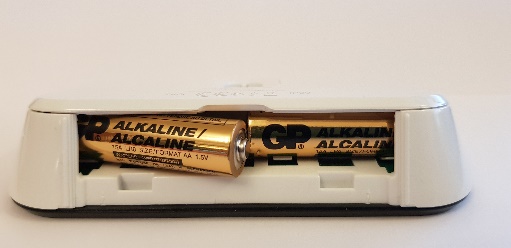

  1. Insert the second battery into the left hand side.

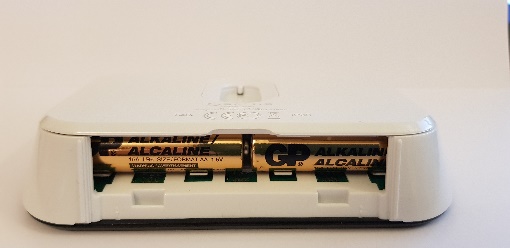

  1. Ensure the batteries are inserted with the correct polarity and are fitted securely in the unit.

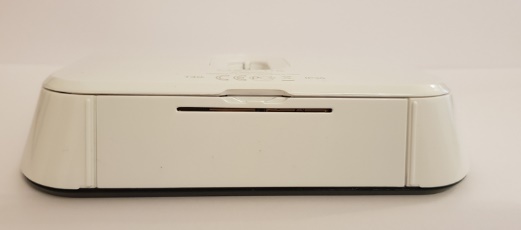

  1. Replace the battery cover.
