 iT500 : Manual Mode on the Thermostat  (5.6.1) .

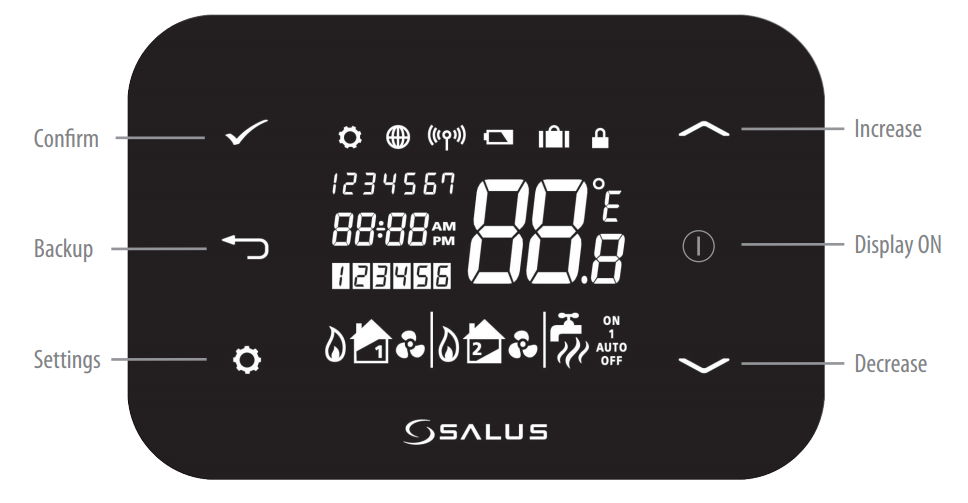

       Keys / Buttons needed :      Cog/Settings      Tick/Confirm     Arrows


Description :  In Manual Mode your thermostat will not run any program schedules but allow you to set your desired room temperature manually.


To Activate :

  1. Press the Cog key    and Tick key    together for 3 seconds.



  1. Use up & down arrows    to select the operating mode.


  1. Press the Tick Key    to confirm the selection.

Operating Modes :


These are displayed in the bottom right-hand corner as below.

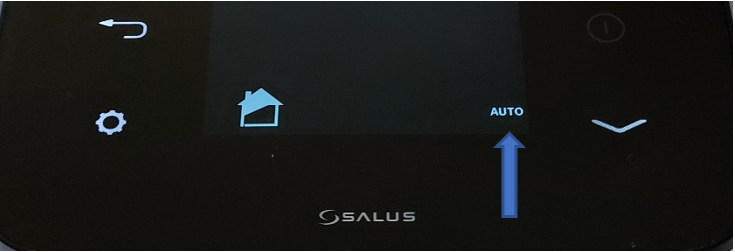

AUTO Mode selected. Your thermostat will run to the programmed schedules.

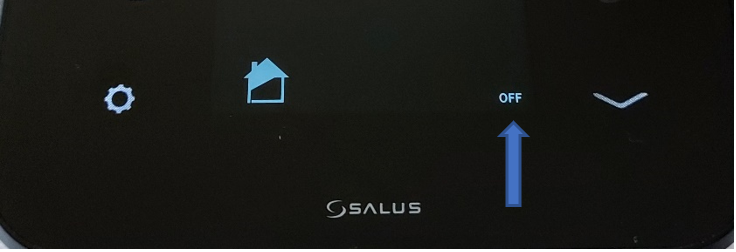

OFF Mode selected.  Your heating Zone is switched off and you are unable to adjust your temperature.

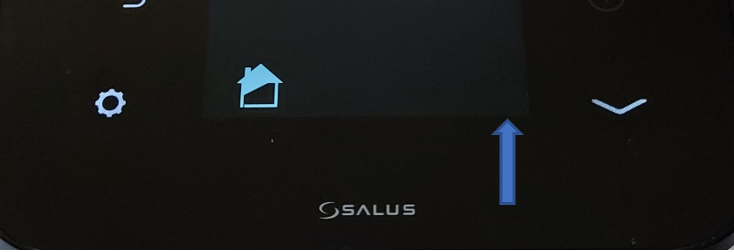

Manual Mode selected. (The Area is blank)          Your heating temperature is controlled manually and the program schedules do not run.

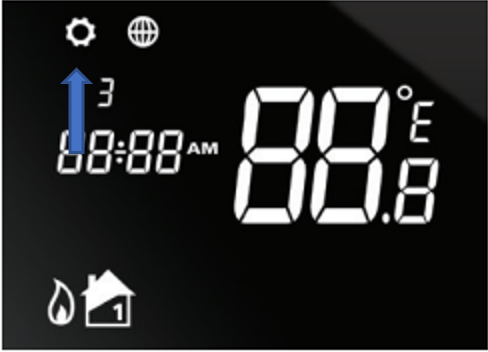

Manual Mode selected.   Confirmed by the Cog icon in the top left-hand corner of the main screen.



To De-Activate :


Follow the procedure for Activating and simply choose the new required Operating Mode.
