  iT500 : Screen Icons and Symbols   (1.9.2) .

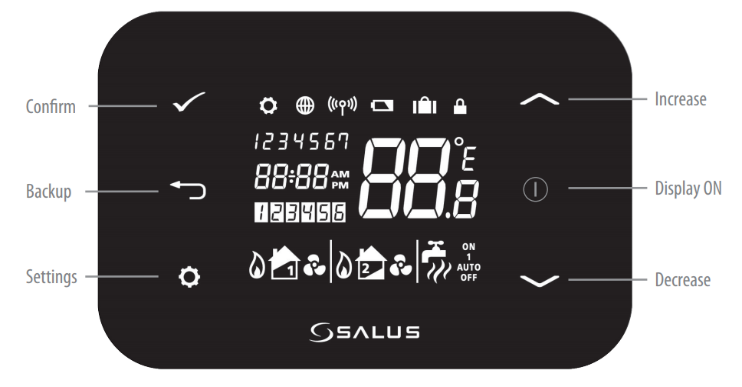

                         A picture containing text, clockDescription automatically generated


 Thermostat Icons

Description

Function


Day of the Week

Displays the number of the day of the week. 1 Being Monday.

Temperature Indicator

Displays the set or measured temperature.

Clock Display

Displays the current time.

Program Number Indicator

Displays the number of the active (selected) program.

Heat Mode Indicator

Indicates the thermostat is calling for heat.

Heat Zone Indicator

Displays the configured Heating Zones.

Hot Water Indicator

Displays the Hot Water Control Zone.

Hot Water Mode Indicator

Indicates the thermostat is calling for Hot Water.

RF Signal Indicator

Indicates that the thermostat is transmitting a wireless signal to the Receiver or is receiving a signal from the iT300 Sensor.

Touch Lock Indicator

Indicates the Touch / Screen Lock is activated.

Battery Status

Indicates when the battery is low on charge.

Holiday Indicator

Displays when the thermostat is in Holiday Operation Mode.

Internet Indicator

The globe icon shows when iT500 has an internet connection.

Cooling Indicator

Shows when a Zone is in Cooling Mode, not Heating Mode.

Water ON Indicator

Shows when Hot Water is set to ‘Continually On’.

Water Once Indicator

Shows when Hot Water is set to ‘Once Mode’.

Auto Indicator

Shows when the thermostat is in Automatic Programs Mode.

OFF Indicator

Shows when the thermostat is in ‘Off Mode’.

Setting Indicator

Shows the thermostat is in Manual Override or Settings Mode.
