 iT500 : Time & Date  (1.7.1) .

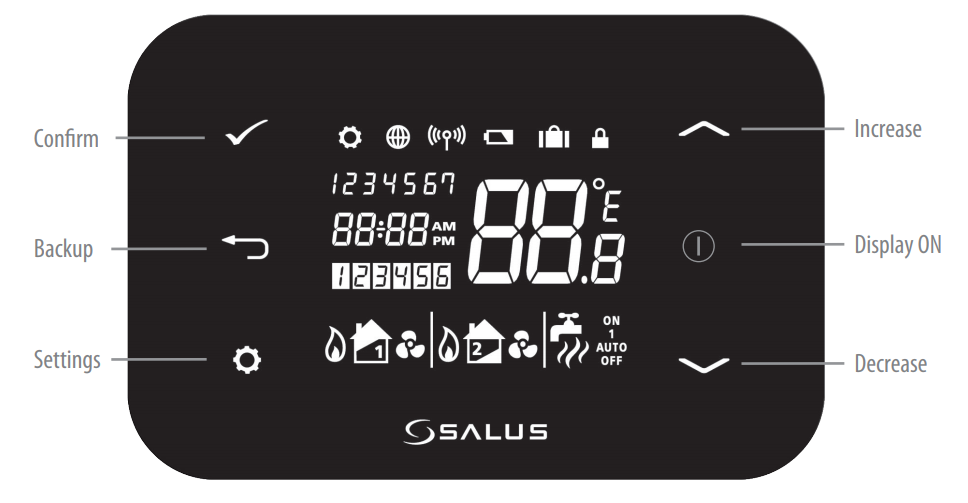

Keys/Buttons needed



Cog/Settings



Tick/Confirm




Arrows


Description :


When the iT500 thermostat is connected to the internet the Time and Date will be set automatically. However, this can also be done manually using the procedure below.


Procedure :

  1. Press and Hold the Cog key  for approximately 5 Seconds.

Heating Zones will now flash.



  1. Press the Cog key   again, ‘hr’ is displayed on screen.

Press tick    to confirm.


’12 hr’ is now displayed on the screen.



  1. Up & Down arrows    will Select 12 or 24 Hour Format.

Press tick    to confirm.



  1. Up & Down arrows     to select the correct Hour.

Press tick    to confirm.



  1. Up & Down arrows    to select the correct Minutes.

Press tick    to confirm.

Set Date option will now appear on screen.



  1. Up & Down arrows    to select the correct Day.

Press tick    to confirm.



  1. Up & Down arrows    to select the correct Month.

Press tick     to confirm.



  1. Up & Down arrows    to select the correct Year.

Press tick    to confirm.
