IT500 - Wiring Diagrams
iT500 : Wiring Diagrams (1.3.2) .
Combination Boilers

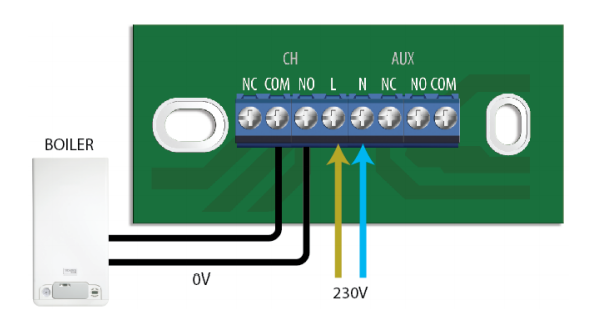

Volt Free – Combination Boiler:
One Central Heating Zone Only.
Volt Free – Combination Boiler:
Two Central Heating Zones, an iT300 Sensor will be required for this configuration.

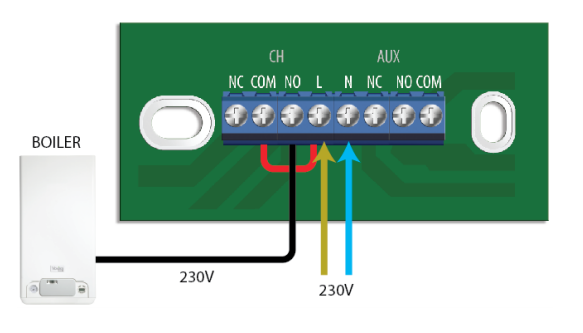

230v Switching – Combination Boiler:
One Central Heating Zone only.

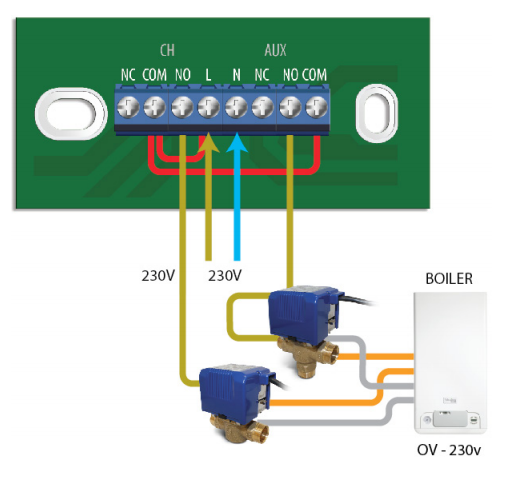

230v Switching – Combination Boiler:
Two Central Heating Zones, an iT300 Sensor will be required for this configuration.

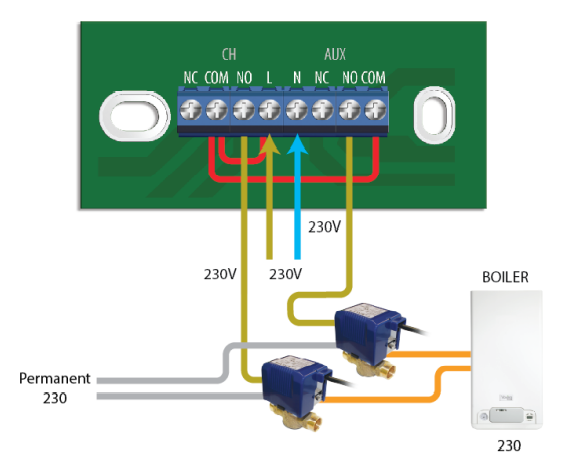

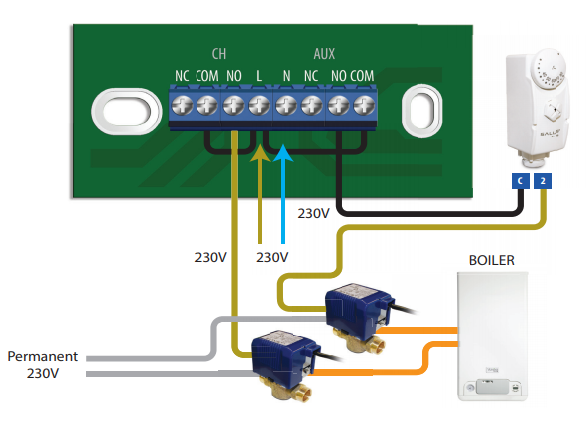

230v Switching – S Plan:
One Central Heating Zone plus Hot Water.

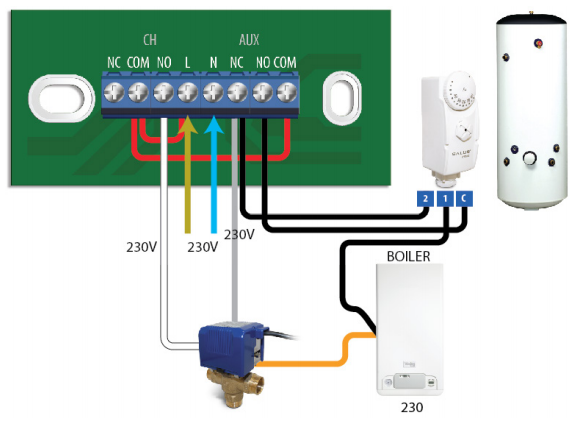

230v Switching – Y Plan :
One Central Heating Zone plus Hot Water.
