SALUS IT700 Thermostat Setup Guide: Offline and Online Pairing

SALUS IT700 Thermostat Setup Guide: Offline and Online Pairing

This guide provides a comprehensive, image-guided walkthrough for setting up and pairing your SALUS IT700 thermostat, both in offline and online modes. This covers setting the IT700 thermostat up in both modes and having it ready to operate,


Part 1: Setup IT700 Offline

These step should be preformed if you can't find the wifi, or you can't activate it.


Step 1: Activate the Receiver
This process should be preformed before starting any other process.

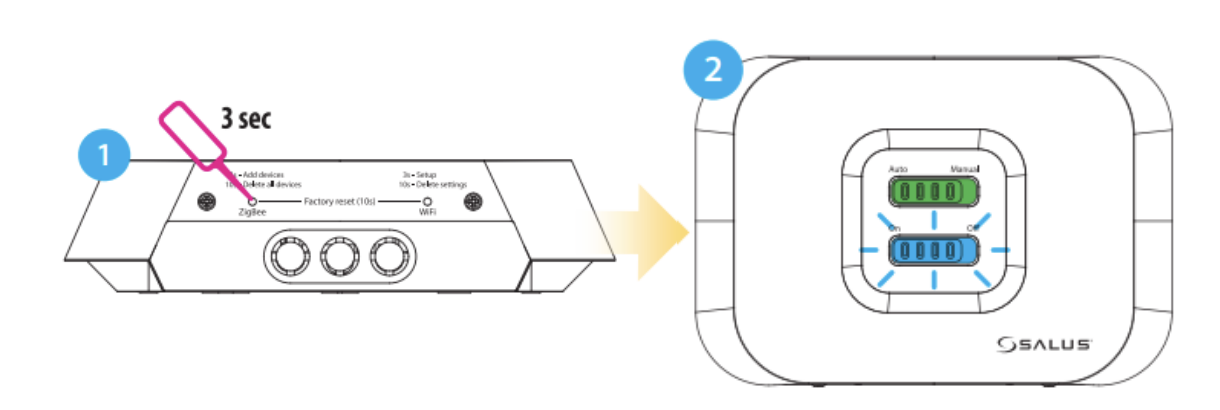

1. Hold the ZigBee Button: When the receiver is powered on, press and hold the ZigBee button for 3 seconds. The on/off switch will be flashing blue to start the setup.



Step 2: Powering On the Thermostat

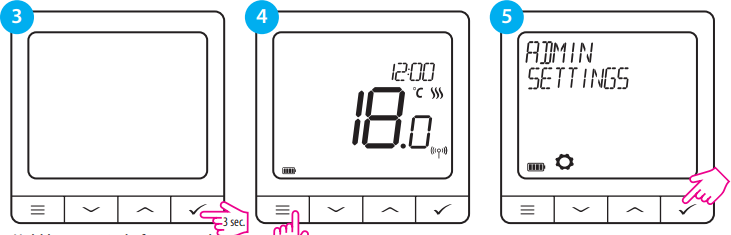

1. Navigate to Admin Settings: To power on the thermostat, press and hold the OK button. Then press the menu button to find “admin settings” using the arrow buttons, and press the OK button to enter.

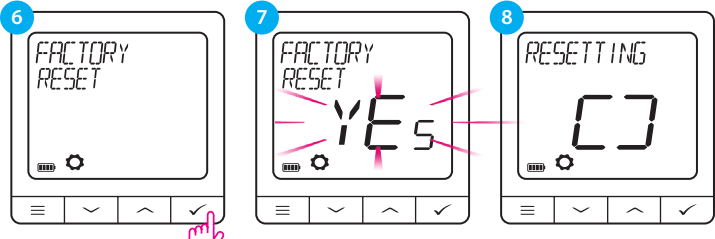

Step 3: Resetting the Thermostat to factory setting

1. Use the Factory Reset option: Use the arrow buttons to find “factory reset”, and press OK button. Choose "yes", and press OK button to confirm. The thermostat will reset.

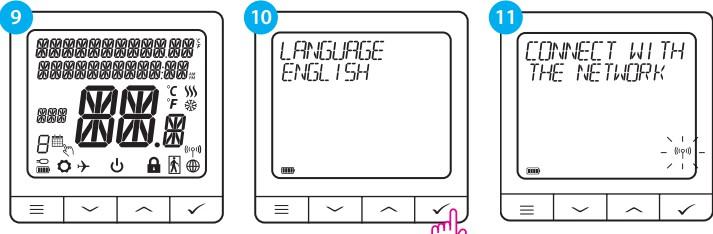

2. Choose a language option: When the thermostat reboots up, chose a language. The Thermostat will then look for the network.

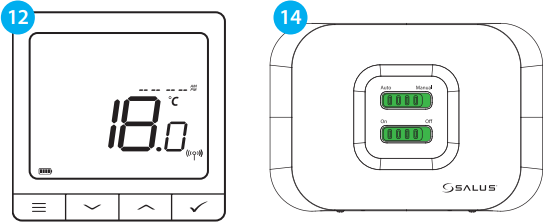

Step 4: Ready to install

In this section the thermostat is ready to pair and operate in the zones.

1. Waiting to pair it: This will allow the area for the thermostat to operate the signal. And for you to set up the area, and change the temperature.




Part 2: Setup IT700 Online via Salus Premium Lite

These are all the steps needed to properly install via wifi using the Salus premium lite application.

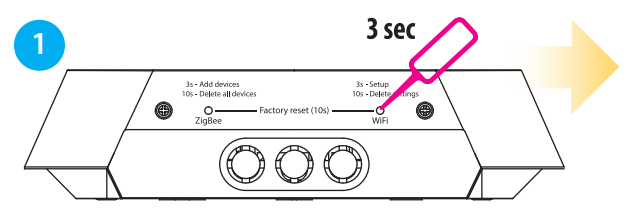

Step 1: Activating the receiver to be found

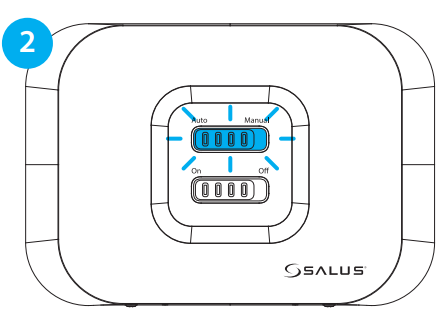

1. Hold the wifi button: press and hold the wifi button for 3 seconds and the Manual will flash blue for the connection.




Step 2: Setting up the process

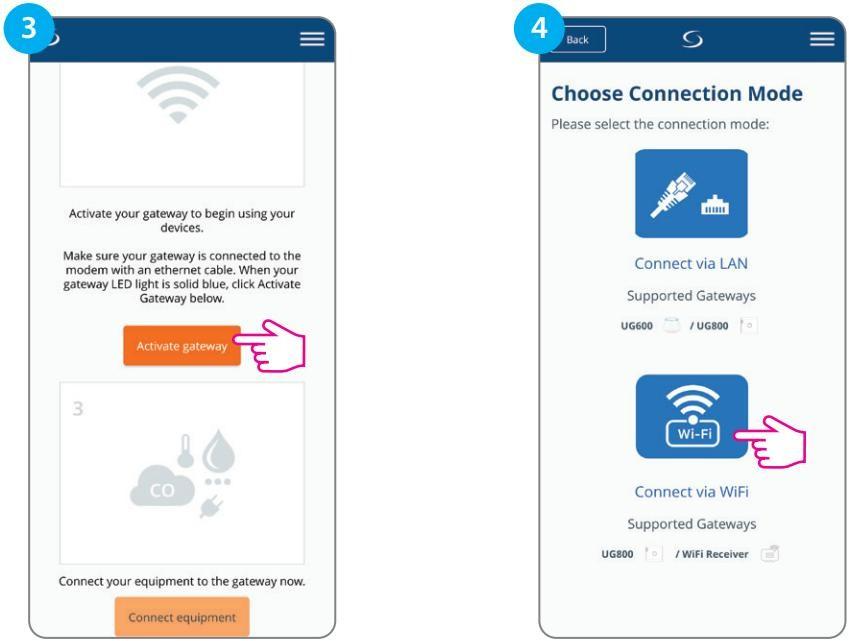

1. Activate the way: After you do step one chose what the gateway will be set too using the application after it has finished activated the way.

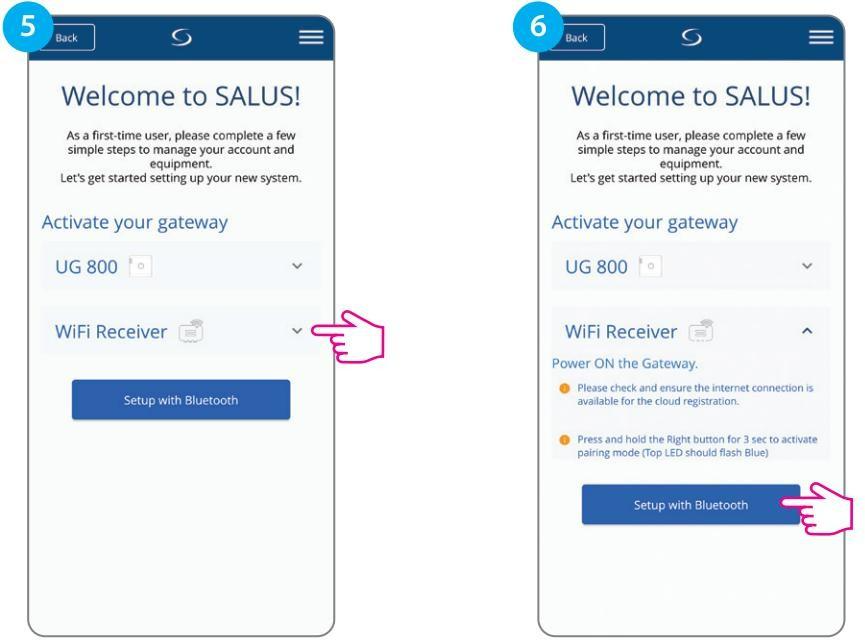

Step 3: Setting the Equipement setting

1. Setup Wifi Receiver: Choose wifi receiver and click setup with Bluetooth.

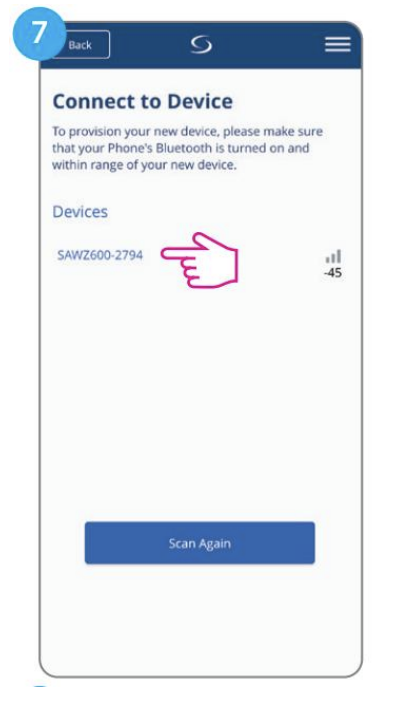

Step 4: PowerOn the device to be find

1. Select your device: power on the device you want to connect make sure it's connected to the internet so it can be properly to setup

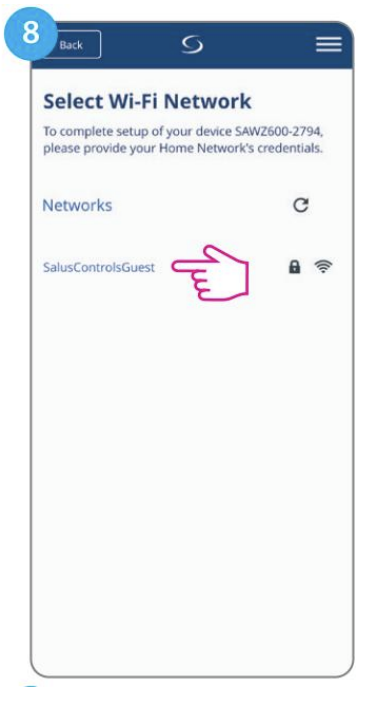

Step 5: Select the wifi option This part is to select which device to used.

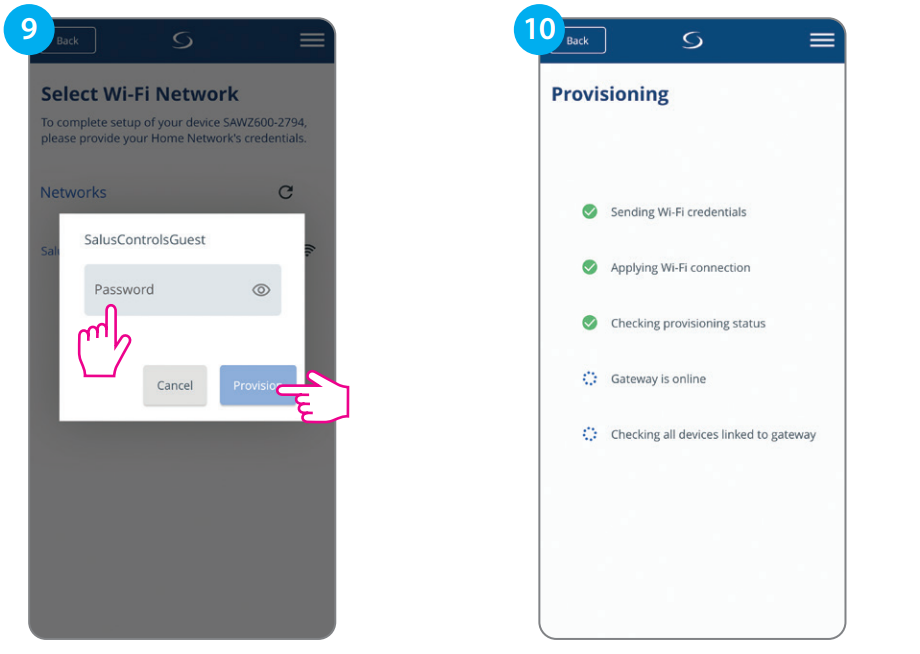

1. Select Wifi Option Here connect the wifi that you used in order to operate the application for it to work.




Step 6: Setup the device name

1. Setup the new device This section is about to name the device after that selected so you know which device your selecting

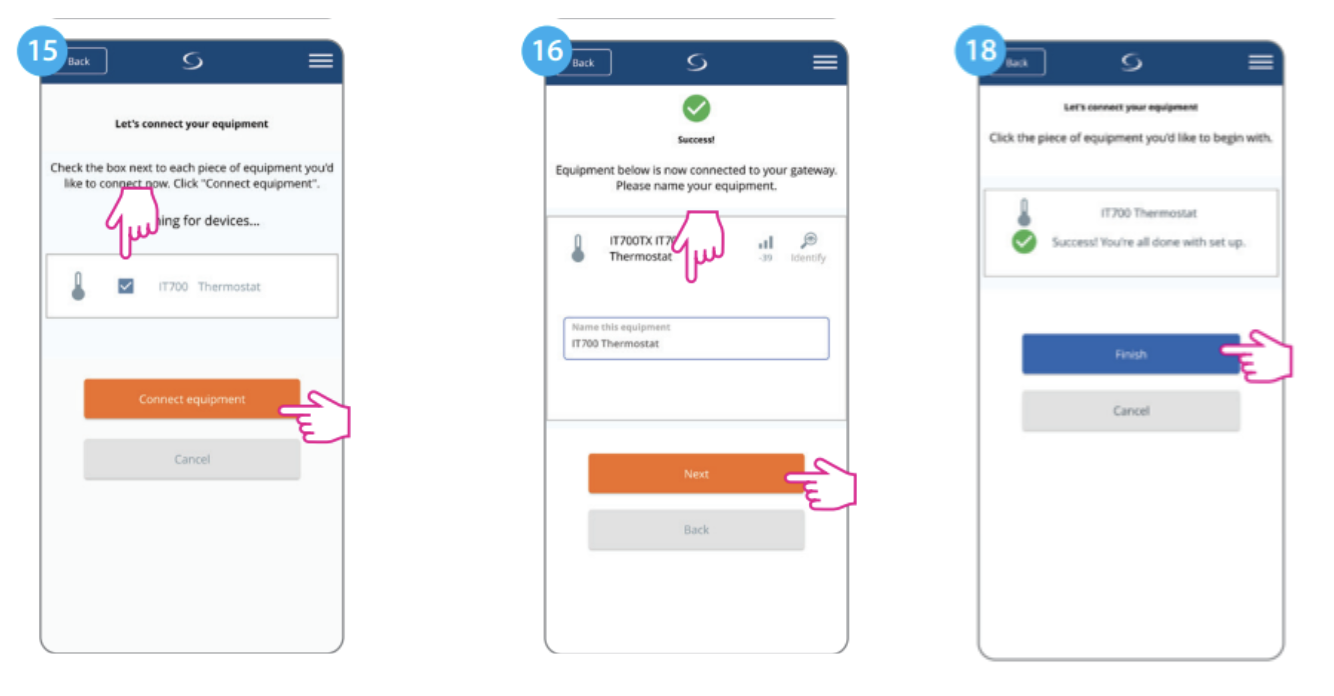

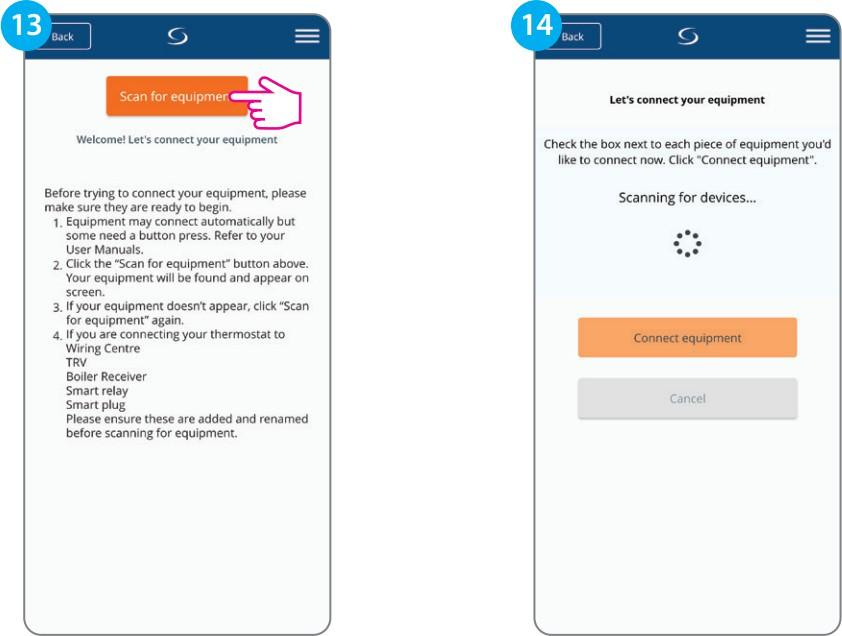

Step 7: Scanning for device in the app

1. Scanning Equipment to search for your devices. If the applications don't load to device then follow the instructions. After doing the correct process the application should be connected to your devices.




Step 8: Finish paring up

1. Selecting the equipment to work to here is to select which equipment should be working for the user



These are all the processes for both offline and online connection.
