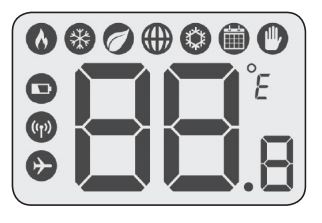

RT310i : Screen Icons and Symbols  (1.9.2) .




Icon

                                                   Meaning




   The Thermostat is calling for heat.


   The Thermostat is in Frost Protection Mode.




   Displayed during RF communication to the receiver.




   Low Battery Voltage warning Indicator.




   Current Temperature Display.



  Displayed when Eco Mode is selected – No longer available.


  Displayed when the thermostat is connected to the internet / ITG310 Gateway.


  The Thermostat is in Cooling Mode.


  The Thermostat is in Schedule Mode.


  Manual Override has been selected.


  Displayed when Holiday Mode has been activated.
