RT310i Wiring Diagrams

RT310i Wiring Diagrams

 RT310i : Wiring Diagrams  (1.3.2) .

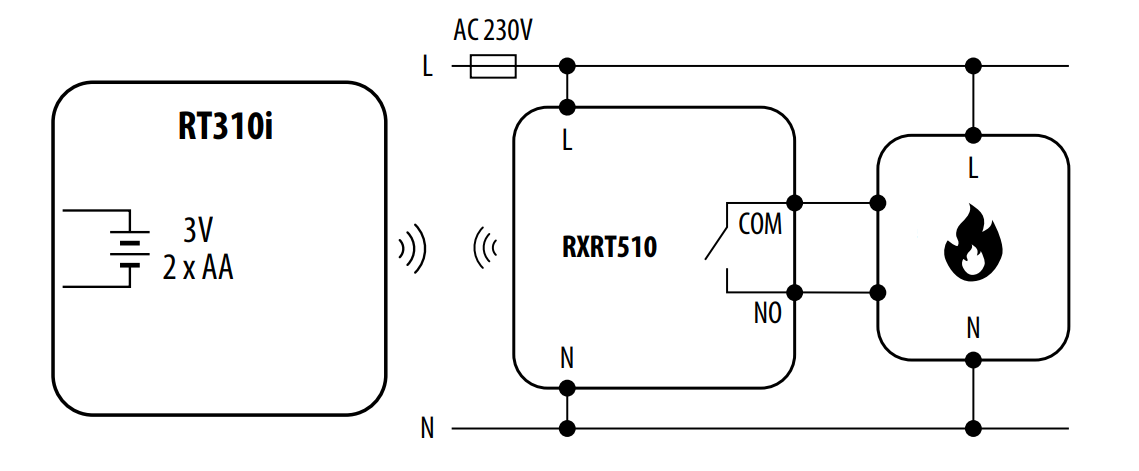

Volt Free.

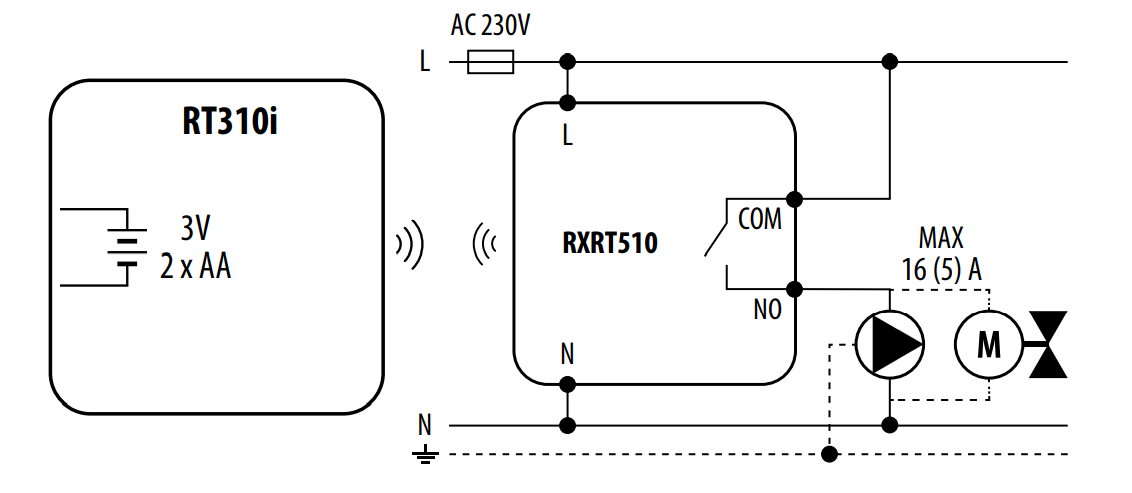

230v Switching.

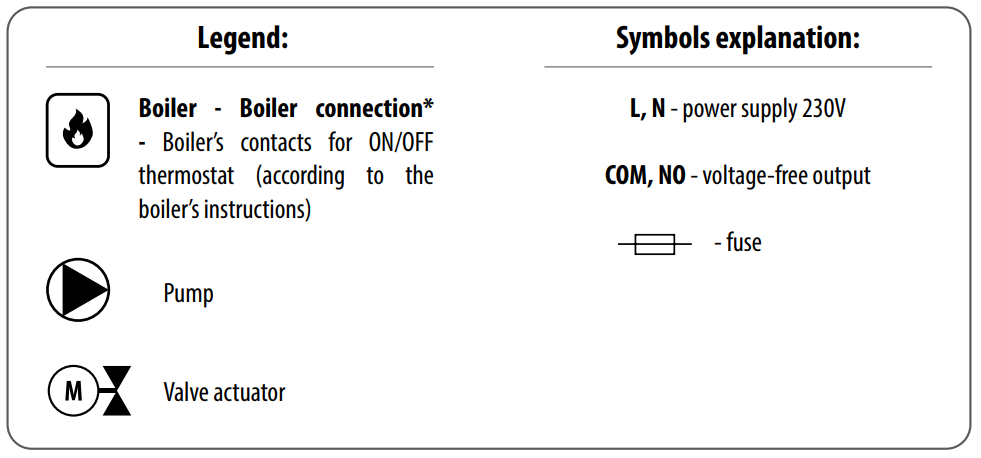

                              Graphical user interface, textDescription automatically generated
