RT310RF & RT310TX Screen Icons and Symbols
RT310RF : Screen Icons and Symbols (1.6.2) .

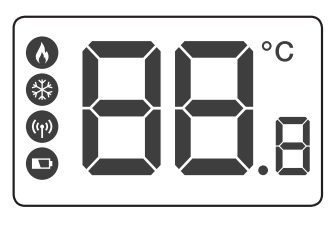

Icon | Meaning |
The Thermostat is calling for heat. | |
The Thermostat is in Frost Protection Mode. | |
The Thermostat is successfully paired with the Receiver. | |
Low Battery Voltage warning Indicator. | |
Current Temperature / Set Point Temperature. |
