RT510RF - Holiday Mode

RT510RF - Holiday Mode



 RT510RF : Holiday Mode  (5.5.1) .





                                                      Buttons Used




Description :

If you are going away or want to turn your heating “off” for a short period of time , ( up to 31 days) you can use the Holiday function. Frost Protection will be activated when in Holiday Mode.

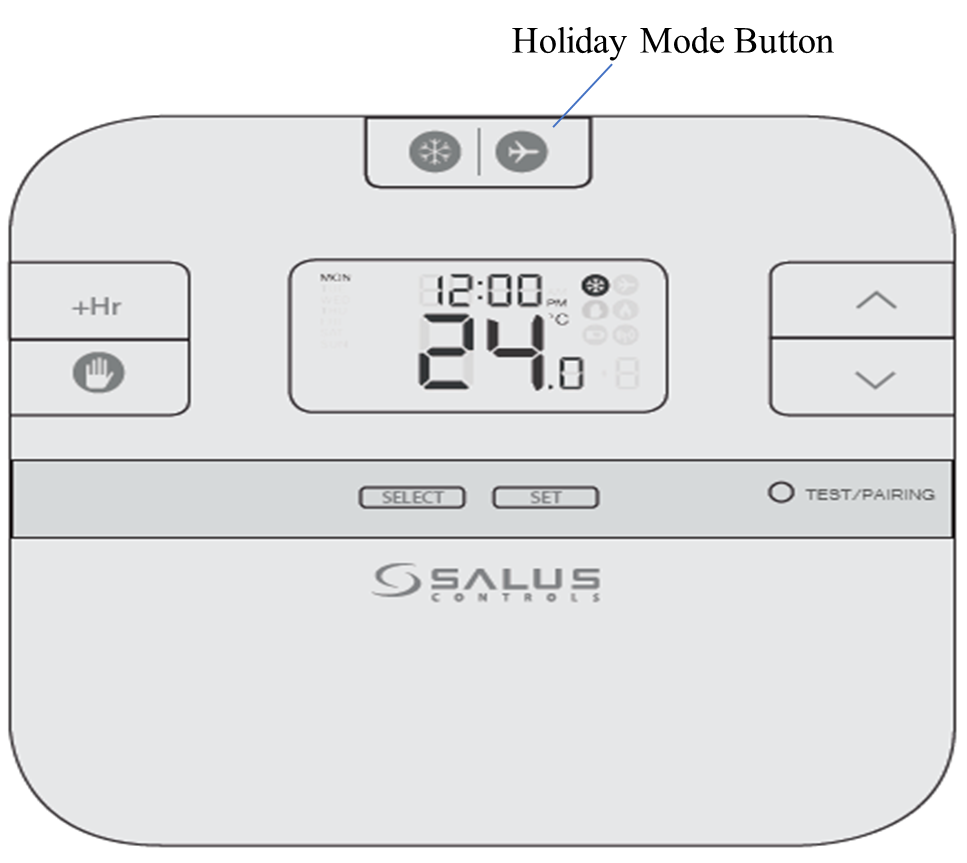

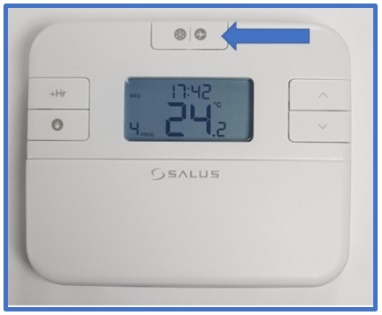

  1. To activate holiday mode, press the button with an Aeroplane icon above the LCD display for approximately 5 seconds until Zero Days can be seen flashing on the display.

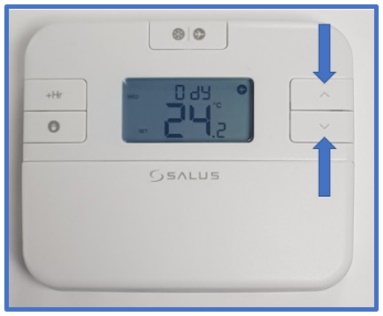

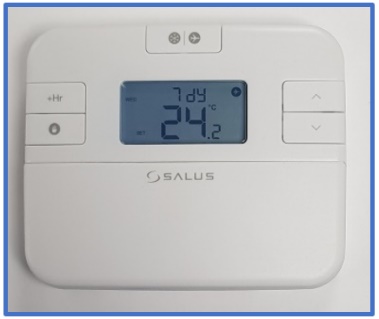

  1. Using the arrow buttons, select the number of days required for the holiday period.

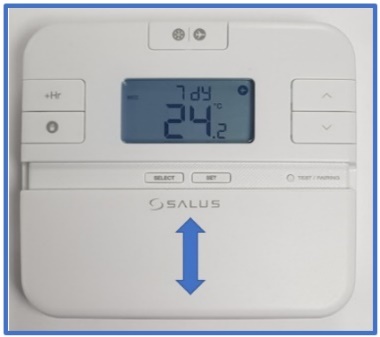

  1. Slide down the front cover to reveal the                        and  buttons.

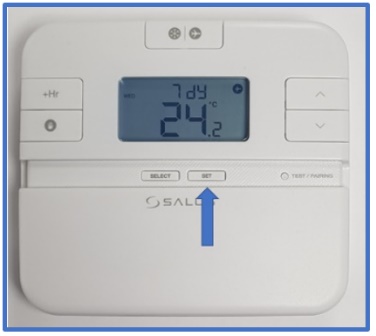

  1. Press  to apply your chosen setting.

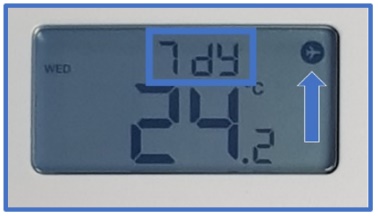

  1. At the top of the screen, you will now see the number of days selected with an aeroplane icon in the top right-hand corner of the screen.



  1. Your Holiday function is now set.
