RT520 - Wiring Diagrams

RT520 - Wiring Diagrams

 RT520 : Wiring Diagrams  (1.4.3) .

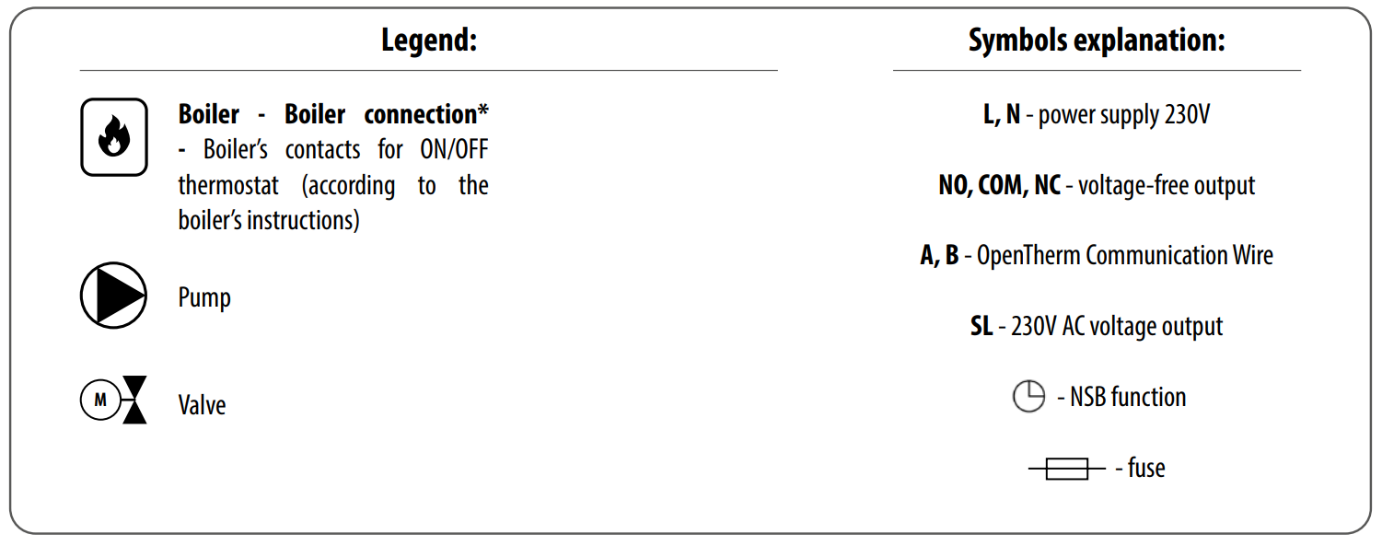

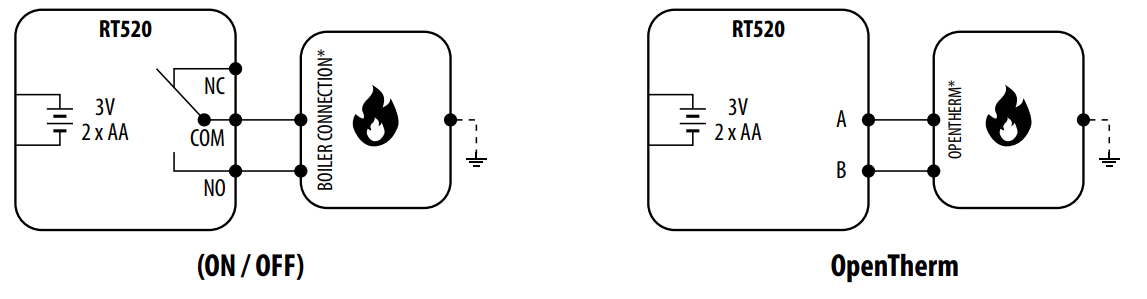

Boiler Connection

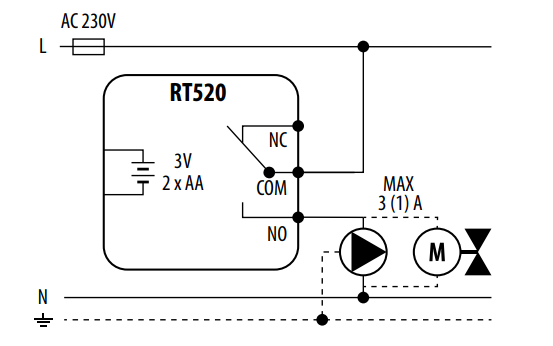

Pump / Valve Connection

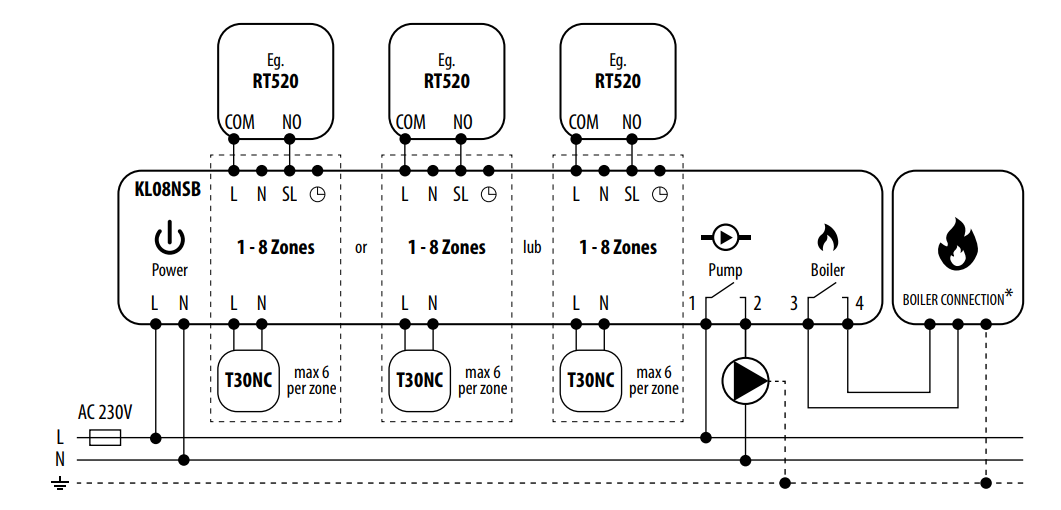

KL08NSB Underfloor Heating Wiring Centre Connection


DiagramDescription automatically generated
