 RT520RFSetting the Time and Date  (5.2.1) .

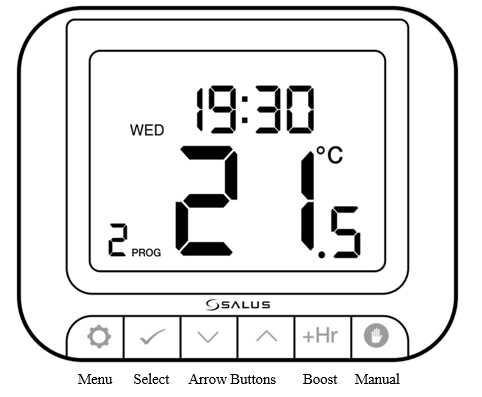

                         Buttons Used : Menu  , ArrowsGroup Shape To Image and Tick .




Description :


Use the following procedure to set the Date and Time on your RT520 Series Thermostat.


  Procedure :

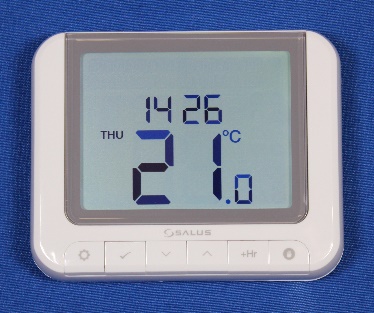

  1. Press one of the buttons to ‘wake’ the thermostat. The screen will illuminate.

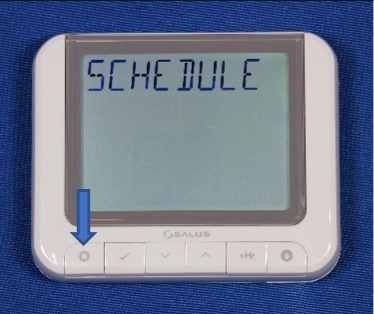

  1. Press the COG  button (first of the buttons from the left) – SCHEDULE will be displayed.

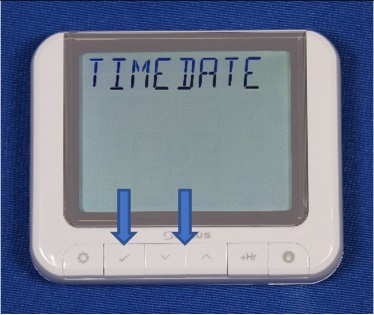

  1. Using the Arrow buttons , scroll until TIME DATE is displayed,  and press tick to enter the settings.

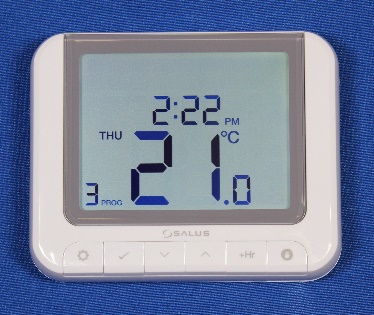

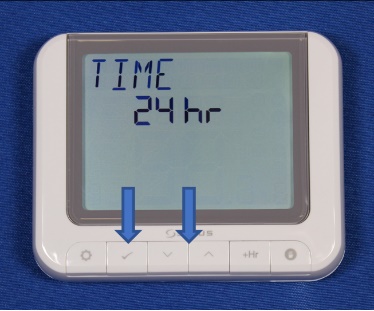

  1. TIME is now displayed and either 12 or 24HR will be flashing below.

Use the Arrow Buttons  to choose either 12 or 24 Hour Clock, then press TICK to confirm.

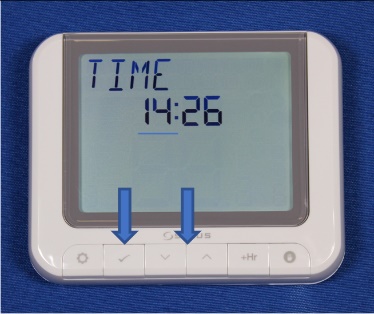

  1. You will now see the Hour flashing.

Using the Arrow buttons, choose the correct hour and then press TICK to confirm.

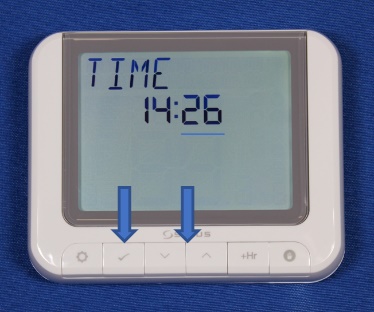

  1. Minutes will now flash.

Using the Arrow buttons  again ,choose the correct minutes then press TICK to confirm.

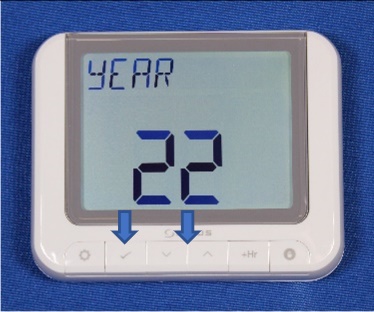

  1. Next you will see the Year flashing on the display.

Using the Arrow buttons  choose the correct Year and then press TICK to confirm.

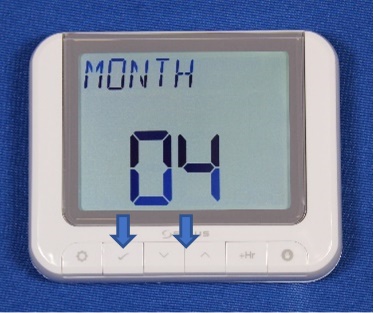

  1. You will now see the Month flashing.

Using the Arrow buttons  choose the correct Month and then press TICK to confirm.

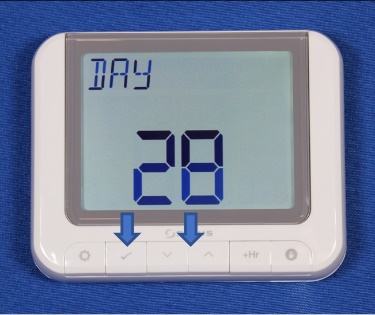

  1. You will now see the Day flashing.

Using the Arrow buttons  choose the correct Day and then press TICK to confirm.

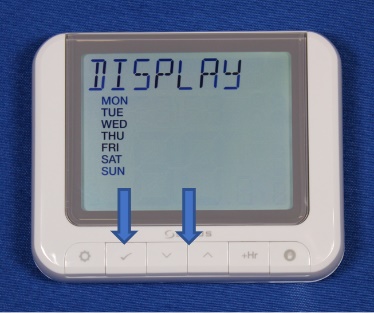

  1. You will now see DISPLAY at the top of the screen and the days of the week flashing below.

Using the Arrow buttons choose either the Days of the Week or Numbers representing the Days of the Week. (Mon = 1).  Then press TICK to confirm.

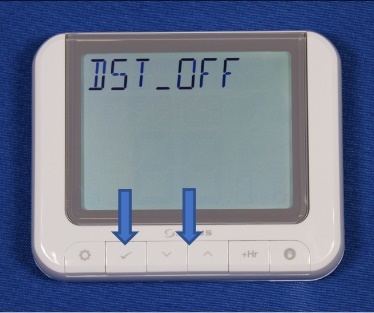

  1. The Daylight Saving Setting (DST) will now be displayed.

Use the Arrow buttons to select if you want DST On or Off and then Press the TICK button to confirm.


  1. This concludes the Time and Date Procedure.
