 RT520RF : Temperature Display Increments  (5.11.1) .

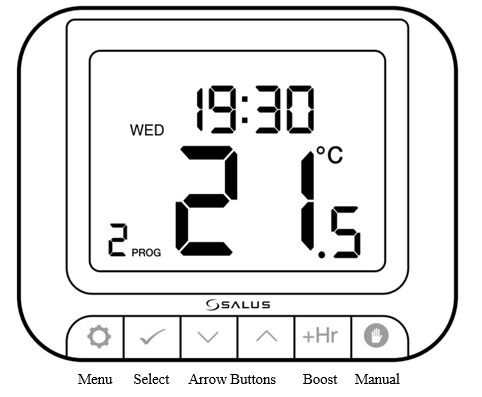

                         Buttons Used : Menu  , ArrowsGroup Shape To Image and Tick .




Description :

If you want to change the accuracy with which your thermostat displays the room temperature you need to change the Display Increments Setting.



  Procedure :

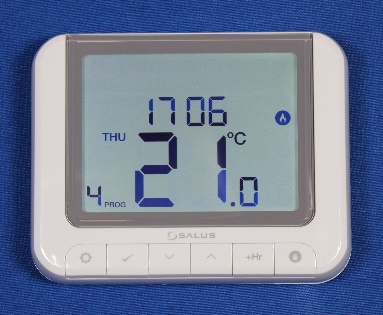

  1. Press one of the buttons to ‘wake’ the thermostat. The screen will illuminate.

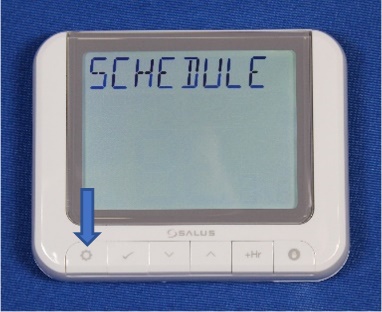

  1. Press the COG  button (first of the buttons from the left) – SCHEDULE will be displayed.

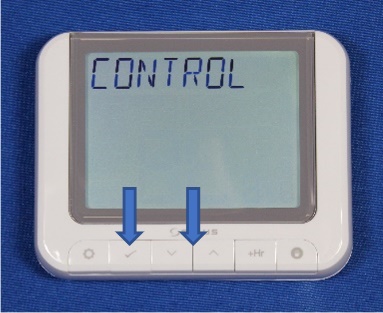

  1. Using the Arrow buttons , scroll until CONTROL is displayed,  and press Tick to enter the settings.

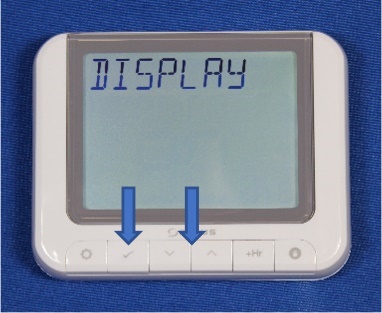

  1. Using the Arrow buttons  scroll until you see DISPLAY, and press Tick to select.

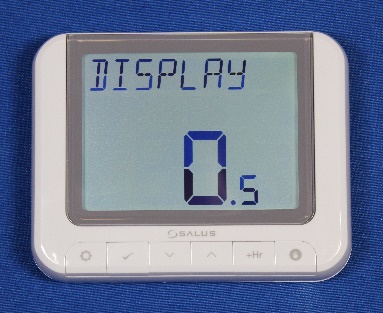

  1. The current Display Increments setting will be flashing on the screen.

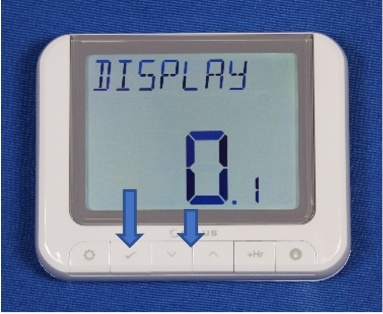

  1. Using the Arrow buttons choose your preference between 0.5 or 0.1 and press the Tick button to confirm your choice.

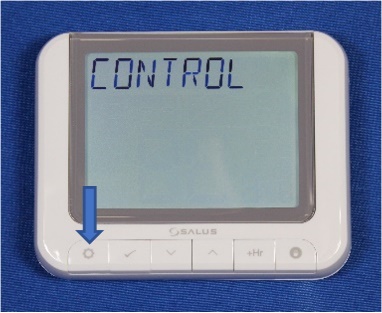

  1. Your thermostat will return to the CONTROL Menu Option.

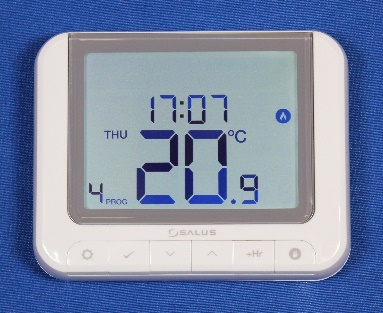

To return to the main, current temperature screen, simply press the Cog button.


  1. This concludes the procedure for setting the Temperature Display Increments.
