RT520RF - Temperature Offset

RT520RF - Temperature Offset

 RT520RF : Temperature Offset (5.10.1) .



                                                  A picture containing text, clockDescription automatically generated

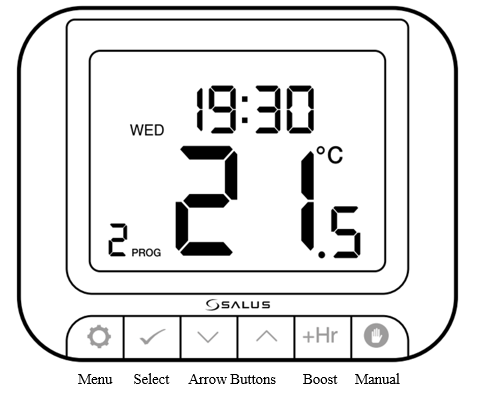

                         Buttons Used : Menu  IconDescription automatically generated, ArrowsGroup Shape To Image and Tick .





Description :

If you need to adjust your thermostats displayed temperature because it is not reading the correct room temperature, you can change the temperature offset setting, This can be changed by plus or minus 3.5 degrees.



  Procedure :


  1. Press one of the buttons to ‘wake’ the thermostat. The screen will illuminate.


  1. Press the COG  button (first of the buttons from the left) – SCHEDULE will be displayed.


  1. Using the Arrow buttons , scroll until CONTROL is displayed,  and press Tick to enter the settings.


  1. Using the Arrow buttons  scroll until you see OFFSET, and press Tick to select.


  1. The current Offset setting will be flashing on the screen.


  1. The Temperature Offset function allows you to adjust the displayed temperature on your thermostat by plus or minus 3.5 degrees.


  1. Using the Arrow buttons select your required offset parameter and press the Tick button to confirm your choice.


  1. Your thermostat will return to the CONTROL Menu.

To return to the main, current temperature screen, simply press the Cog button.


  1. The displayed temperature will be adjusted  from the current room temperature reading by your selected offset value.


This concludes the procedure for setting the Temperature Offset feature.
