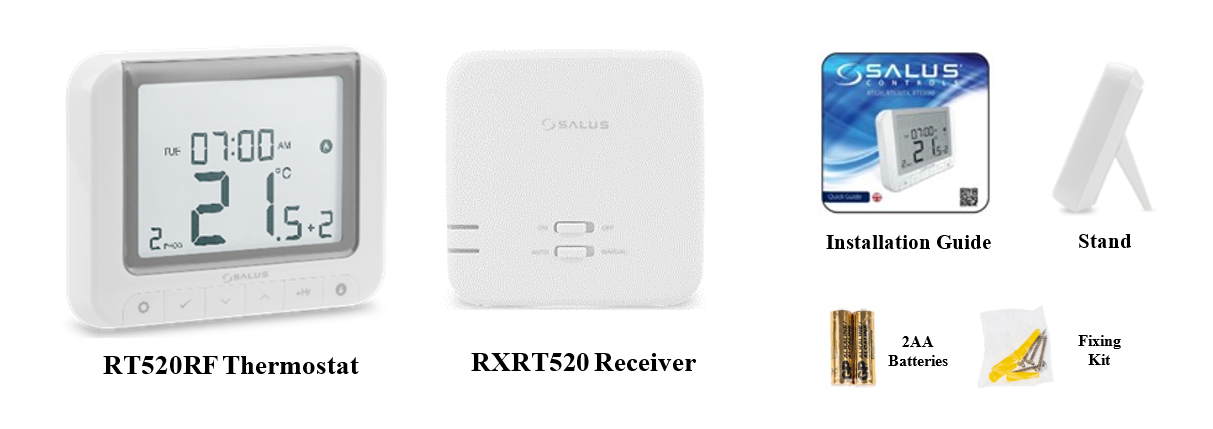

 RT520RF : What’s in the Box  (1.1.1) .



Thermostat :


The RT520RF room thermostat simply switches the heating system on and off as necessary. It works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting, and switching it off once this set temperature has been reached.

Receiver :


Your thermostat communicates wirelessly with the RXRT520 Receiver. It is the switching part of your heating system. Wired directly to your boiler, pump and control valves the receiver controls your heating.

Installation Guide :


An installation quick guide and full user manual are included.

Thermostat Stand :


An optional desk stand is also provided for the RT520RF Thermostat.

Batteries :


2 x AA Alkaline Batteries

Fixing Kit:


The RT520RF is supplied on a detachable backplate so that it may be mounted on a wall. A Fixing screw kit is supplied for this purpose.
