SQ610 - FAQs
Question: I forgot the PIN – what should I do?
Answer: Contact SALUS technical support – the device will need to be sent in for unlocking.
Answer: Contact SALUS technical support – the device will need to be sent in for unlocking.
Question: My thermostat keeps losing connection with the wiring center – what does it mean?
Answer: Frequent disconnections may indicate weak ZigBee signal strength.
To check this:
To check this:
– Move the thermostat closer to another 230V-powered SALUS device (e.g., KL08RF wiring center, UGE600/UG800 gateway,
SPE600 smart plug, or a wired thermostat).
SPE600 smart plug, or a wired thermostat).
– If the connection improves, signal range was likely the issue.
To solve it:
– Add a signal repeater or another 230V-powered SALUS device (e.g., SPE600), which will also act as a range extender.
Question: Changing temperature units
Answer: You can change the temperature units (°F/°C) in two ways:
– Add a signal repeater or another 230V-powered SALUS device (e.g., SPE600), which will also act as a range extender.
Question: Changing temperature units
Answer: You can change the temperature units (°F/°C) in two ways:
– On the device: Menu → Installer settings → Temperature scale → select unit → confirm.
– In the app: Select device tile → Settings (gear icon) → Settings → Advanced settings → choose unit → save changes at the bottom.
Question: Compatibility with SR600
Answer: Thermostats SQ610/SQ610RF are compatible with the SR600 switch. To pair them:
– Add both devices to the system.
– Select the thermostat tile.
– Choose the relay icon and link the devices.
Question: Checking paired devices
Answer: To check what device the SQ610/SQ610RF is paired with:
– Select the thermostat tile → Settings (gear icon).
– In the “Information” tab, see the “Paired with” line.
Question: Additional S1/S2 options
Answer: To use the additional S1/S2 inputs:
– Connect an additional sensor according to the manual.
– On the thermostat: Menu → Installer settings → Additional input S1/S2 → select function → confirm.
– In the app: Settings → Advanced settings → “Input S1/S2” → choose function from the list.
Question: Installing SQ610 (flush-mounted)
Answer: The SQ610 thermostat is flush-mounted – connect it according to the manual and place it in a wall mounting box.

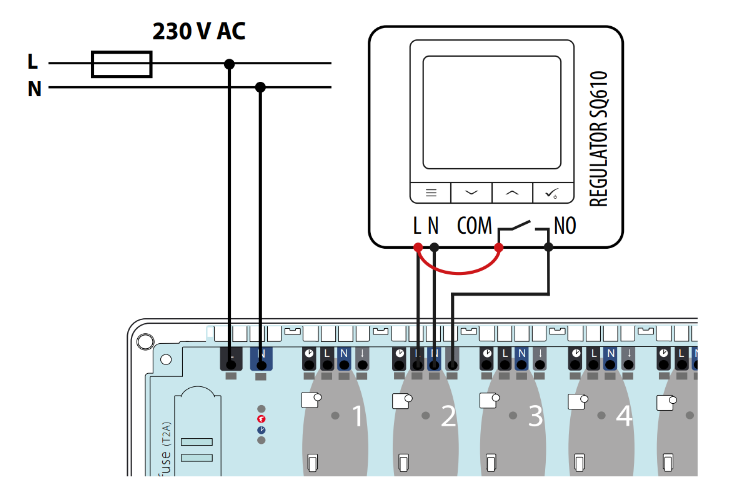

Question: Connecting to KL06 control unit
Answer: To connect the SQ610 to the KL06 control unit, use a 3-core cable.
