UG600 - Technical Information Page

UG600 - Technical Information Page

 UG600 : Technical Information Page  (8.1.1) .





Product name

UG600 Gateway

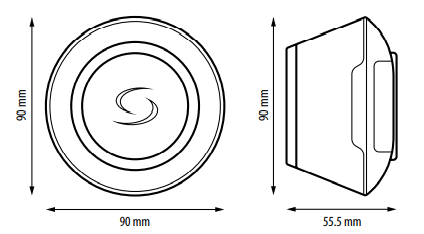

Dimensions

L-90 x W-90 x H-55.5

User Interface

One Multifunction button

Indication

Bi Colour LED - RED - GREEN

Port

1 x 10/100 LAN port

Power Supply

5V DC through USB (1m Detachable Micro USB to Type A cable) by power adaptor.

Housing Material

PC241R

Mounting

Table or wall mounted.

Colour

White

Finishing

Matte white fine finishing.

IP Rating

IP30

Protection

Rohs-2, REACH, WEEE

Frequency

2,4GhZ Zigbee HA1.2

Operating Temperature

0-50 C

Storage Temperature

-10-60 C

Operating Humidity

5-90% RH

Approval

CE; R&TTE
